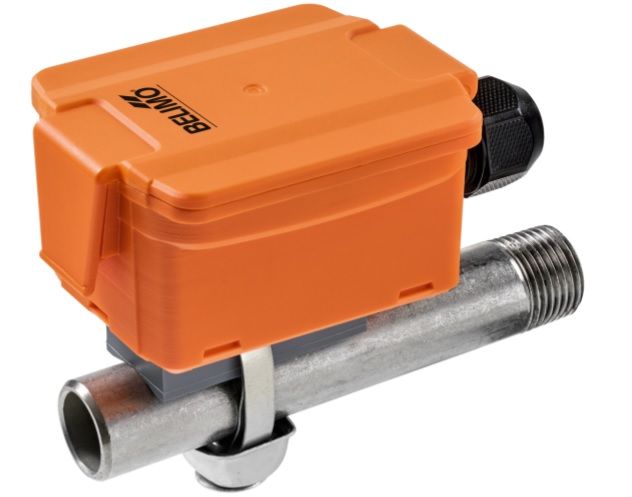

01HT-1C - Belimo Contact Temperature Sensor, Ni1000

£28.39 £23.66

On request

Next Supplier Stock Update: 18/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

RESISTANCE CHARACTERISTICS

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP65
Output Signal	Ni1000 (Siemens)
Manufacturer	Belimo
Sensor Type	Temperature
Sensor characteristics	Strap-On

Description

Find every component of your Air Handling system at IACS. Temperature Sensors manufactured by Belimo that are now on hand can all be supplied free delivery or 1-2 working days delivery.

The Belimo 01HT-1C is a Sensor that is employed in HVAC solutions and which offers clear temperature measurement.

The Sensor 01HT-1Cmust be in close proximity to the thing being sensed in order for conduction to detect changes.

At IACS, you can get the best Belimo Sensor for your system at the right price.

Consult the Belimo custom datasheet above or contact IACS via email for personal ised ass istance if you have queries about size or installation.

Electrical data	Electrical connection	Removable spring loaded terminal block max. 2.5 mm²
	Cable entry	cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm
	Output signal passive temperature	PT100
		PT1000
		Ni1000
		Ni1000TK5000
		NTC10k (10k2)
	Media	Water
Measuring data	Measured values	Temperature
	Measuring range temperature	depending on used sensor
	Accuracy temperature	PT.. : Class B, ±0.3 °C @ 0 °C
		Ni.. : ±0.4 °C @ 0 °C
		NTC10k (10k2): ±0.22 °C @ 25 °C
Materials	Cable gland	PA6, black
	Housing	Cover: Lexan, Belimo orange NCS S0580- Y6OR
		Bottom: Lexan, Belimo orange NCS S0580- Y6OR
		Seal: 0467 NBR70, black

Optional accessories	Description	Type
	Tightening strap 40...110 mm with contact fluid	A-22P-A41
	Tightening strap 50...900 mm with contact fluid	A-22P-A43
