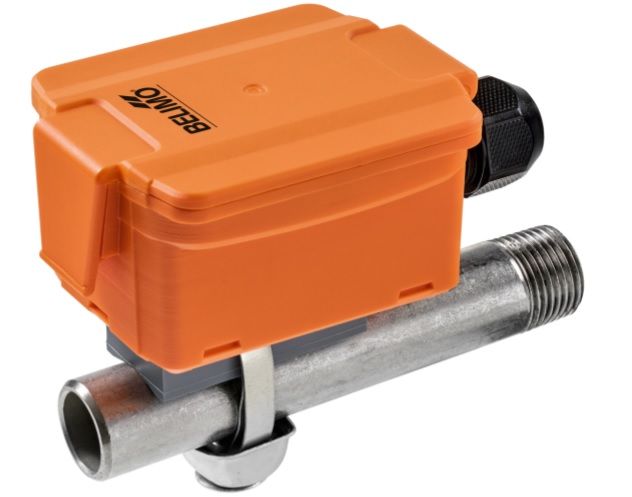

01HT-1D - Belimo Contact Temperature Sensor, Ni1000TK5000

£31.84 £26.53

On request

Next Supplier Stock Update: 18/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

RESISTANCE CHARACTERISTICS

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP65
Output Signal	Ni1000 (Siemens)
Manufacturer	Belimo
Sensor Type	Temperature
Sensor characteristics	Strap-On

Description

Explore all the components for your ventilation system at IACS. All Belimo Temperature Sensors in stock are ready for free delivery or 1-2 working days delivery.

The Belimo 01HT-1D is a Sensor used in HVAC applications and it is a device that provides an precise measurement of temperature.

The Sensor 01HT-1D requires to be in close proximity to the object being sensed in order to monitor changes through conduction.

The ideal Belimo Sensors for your system are most affordable at IACS.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email IACS for individual ised support.

Electrical data	Electrical connection	Removable spring loaded terminal block max. 2.5 mm²
	Cable entry	cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm
	Output signal passive temperature	PT100
		PT1000
		Ni1000
		Ni1000TK5000
		NTC10k (10k2)
	Media	Water
Measuring data	Measured values	Temperature
	Measuring range temperature	depending on used sensor
	Accuracy temperature	PT.. : Class B, ±0.3 °C @ 0 °C
		Ni.. : ±0.4 °C @ 0 °C
		NTC10k (10k2): ±0.22 °C @ 25 °C
Materials	Cable gland	PA6, black
	Housing	Cover: Lexan, Belimo orange NCS S0580- Y6OR
		Bottom: Lexan, Belimo orange NCS S0580- Y6OR
		Seal: 0467 NBR70, black

Optional accessories	Description	Type
	Tightening strap 40...110 mm with contact fluid	A-22P-A41
	Tightening strap 50...900 mm with contact fluid	A-22P-A43
