22ADP-18QB

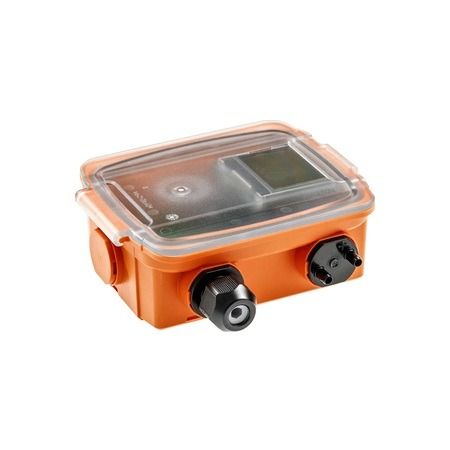

22ADP-18QB - Belimo Differential Pressure Sensor 250Pa, DC 0...10 V 4...20 mA, incl. display, autozero
£245.28
£204.40
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Air Differential Pressure |
Find every component of your Air Handling system at iacs. Differential Pressure Sensors manufactured by Belimo that are now on hand can all be supplied with either Free or 1-2 Days Delivery.
The Belimo 22ADP-18QB is a Sensor that is employed in HVAC solutions and which offers clear Differential Pressure measurement.
To keep track of gas differentials that aren't aggressive or combustible, such the air pressure difference. This device checks on air filters, fans, industrial cooling air cycles, and air and fire dampers.
IACS provides the greatest Belimo Sensors for your system at the most affordable costs.
If you have any questions regarding size or installation, please refer to the Belimo custom datasheet above or email iacs for customised assistance.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 1.1 W | ||||||||||||||||||||||||||||||||||||
| Power Supply AC | 24 V, ±10%, 1.7 VA | |||||||||||||||||||||||||||||||||||||
| Cable entry | Cable gland PG11 Ø6...10 mm, with strain relief Ø6...8 mm | |||||||||||||||||||||||||||||||||||||
| Functional data | Sensor Technology | Piezo measuring element | ||||||||||||||||||||||||||||||||||||
| Multirange | 8 fields selectable | |||||||||||||||||||||||||||||||||||||
| Output signal active note | Output DC 0...5/10 V selectable with switch | |||||||||||||||||||||||||||||||||||||
| Voltage output: min. 10 kΩ load | ||||||||||||||||||||||||||||||||||||||
| Current outout: max. 500 Ω load | ||||||||||||||||||||||||||||||||||||||
| Display | LCD, 29 x 35 mm with backlight | |||||||||||||||||||||||||||||||||||||
| Measured values: Pa, inchWC (configurable) | ||||||||||||||||||||||||||||||||||||||
| Media | Air | |||||||||||||||||||||||||||||||||||||
| Measuring data | Measured values | Differential pressure | ||||||||||||||||||||||||||||||||||||
| Measuring media | Air and non-aggressive gases | |||||||||||||||||||||||||||||||||||||
| Measuring range settings pressure |
|
|||||||||||||||||||||||||||||||||||||
| Accuracy pressure | deviation compared to the reference device ±1 Pa at range <250 Pa | |||||||||||||||||||||||||||||||||||||
| Materials | Cable gland | PA6, black | ||||||||||||||||||||||||||||||||||||
| Housing | Cover: Lexan, Belimo orange NCS S0580- Y6OR | |||||||||||||||||||||||||||||||||||||
| Bottom: Lexan, Belimo orange NCS S0580- Y6OR | ||||||||||||||||||||||||||||||||||||||
| Seal: 0467 NBR70, black |
| Optional accessories | Description | Type |
| Duct connector (metal) 40 mm | A-22AP-A02 | |
| Duct connector (metal) 100 mm | A-22AP-A04 | |
| Scope of delivery | Mounting plate | |
| Dowel | ||
| Screws |
