22WDP-111

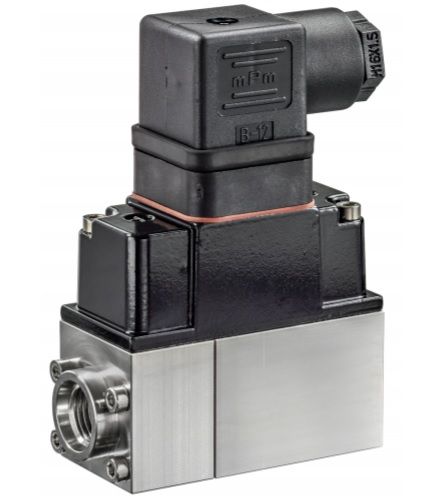

22WDP-111 - Belimo Differential Pressure Sensor Water L=0...1 bar, DC 0...10 V
£399.00
£332.50
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 0..10Vdc |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Water Differential Pressure Transducer |
| Pressure range | 0 to 1 Bar |
Visit iacs to find every part of your HVAC system. In stock Belimo Differential Pressure Sensors may all be delivered with either Free or 1-2 Days Delivery.
The Belimo 22WDP-111 is a Sensor that is utilised in HVAC systems and a tool that provides Differential Pressure readings.
For calculating the air pressure difference and other non-flammable, non-aggressive gas differentials. air filters, fans, industrial cooling air cycles, and air and fire dampers are all under observation.
IACS offers the most reasonable prices on the best Belimo Sensors for your system.
Refer to the Belimo custom datasheet above or email iacs for personalised ised help if you have any issues about size or installation.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 0.37 W |
| Power Supply AC | 24 V, ±10%, 0.9 VA | |
| Electrical connection | Plug for wire 0.5...1.5 mm² | |
| Cable entry | Angle plug according to DIN 43650, construction A | |
| Functional data | Output signal active pressure | DC 0...10 V |
| Output signal active note | Voltage output: min. 2 kΩ load | |
| Mechanical connection | pressure connector: G1/4" | |
| Mounting | installation position unrestricted | |
| Media | Water | |
| Measuring data | Measured values | Differential pressure |
| Measuring media | Air and non-aggressive gases | |
| Accuracy pressure | <±1% of measuring range (@ -5...75 °C) | |
| Overload range | 6 bar, Single-sided | |
| Maximum system pressure | 21 bar | |
| Materials | Housing seal | EPDM |
| Housing | Bottom Part: Stainless steel 1.4305 | |
| Top Cover: Aluminum pressure die casting | ||
| Medium wetted parts | Stainless steel 1.4301, Ceramic |
| Optional accessories | Description | Type |
| Pipe connector brass, 2 pcs., Pipe 6 mm to G 1/4" (external thread) | A-22WP-A04 | |
| Pipe connector stainless steel, 2 pcs., Pipe 6 mm to G 1/4" (external thread) | A-22WP-A06 | |
| Pipe connector brass, 2 pcs., Pipe 8 mm to G 1/4" (external thread) | A-22WP-A08 | |
| Pipe connector stainless steel, 2 pcs., Pipe 8 mm to G 1/4" (external thread) | A-22WP-A10 |
