22WDP-131

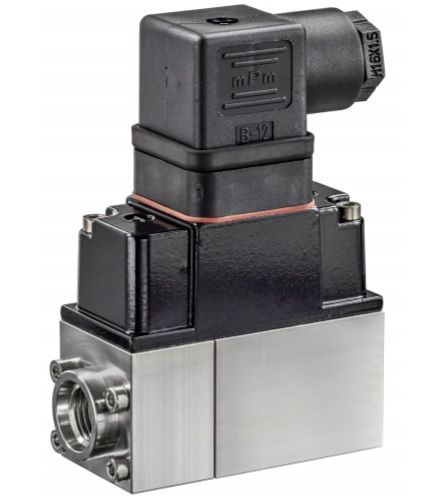

22WDP-131 - Belimo Differential Pressure Sensor Water L=0...1 bar, 4...20 mA
£403.20
£336.00
On request
Next Supplier Stock Update: 18/10/2026
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Water Differential Pressure Transducer |
| Pressure range | 0 to 1 Bar |
Find every component of your Air Handling system at iacs. Differential Pressure Sensors manufactured by Belimo that are now on hand can all be supplied with either Free or 1-2 Days Delivery.
The Belimo 22WDP-131 is a Sensor that is employed in HVAC solutions and which offers clear Differential Pressure measurement.
For figuring out gas differentials that aren't aggressive or combustible, such the air pressure difference. This device checks on air filters, fans, industrial cooling air cycles, and air and fire dampers.
IACS provides the greatest Belimo Sensors for your system at the most affordable costs.
If you have any questions regarding size or installation, please refer to the Belimo custom datasheet above or email iacs for customised assistance.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 0.5 W |
| Electrical connection | Plug for wire 0.5...1.5 mm² | |
| Cable entry | Angle plug according to DIN 43650, construction A | |
| Functional data | Output signal active pressure | 4...20 mA |
| Output signal active note | Current outout: max. 900 Ω load | |
| Mechanical connection | pressure connector: G1/4" | |
| Mounting | installation position unrestricted | |
| Media | Water | |
| Measuring data | Measured values | Differential pressure |
| Measuring media | Air and non-aggressive gases | |
| Accuracy pressure | <±1% of measuring range (@ -5...75 °C) | |
| Overload range | 6 bar, Single-sided | |
| Maximum system pressure | 21 bar | |
| Materials | Housing seal | EPDM |
| Housing | Bottom Part: Stainless steel 1.4305 | |
| Top Cover: Aluminum pressure die casting | ||
| Medium wetted parts | Stainless steel 1.4301, Ceramic |
| Optional accessories | Description | Type |
| Pipe connector brass, 2 pcs., Pipe 6 mm to G 1/4" (external thread) | A-22WP-A04 | |
| Pipe connector stainless steel, 2 pcs., Pipe 6 mm to G 1/4" (external thread) | A-22WP-A06 | |
| Pipe connector brass, 2 pcs., Pipe 8 mm to G 1/4" (external thread) | A-22WP-A08 | |
| Pipe connector stainless steel, 2 pcs., Pipe 8 mm to G 1/4" (external thread) | A-22WP-A10 |
