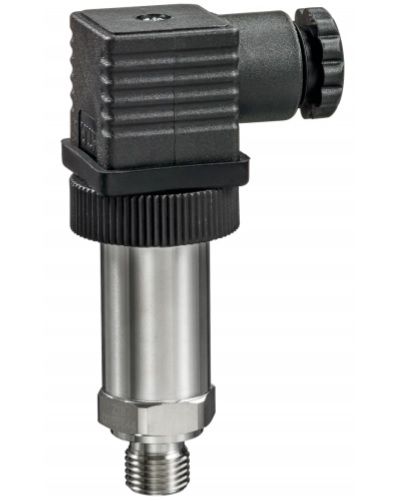

22WP-117 - Belimo Pressure Sensor for Liquids L=0...16 bar, DC 0...10 V

£131.88 £109.90

On request

Next Supplier Stock Update: 17/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP65
Output Signal	0..10Vdc
Manufacturer	Belimo
Power Supply	24Vac/Vdc
Sensor Type	Gas Pressure Transducer
Pressure range	0 to 16 Bar

Description

Explore all the components for your ventilation system at IACS. All Belimo Pressure Sensors in stock are ready for delivery with either Free or 1-2 Days Delivery.

The Belimo 22WP-117 is a Sensor used in HVAC applications to measure Pressure of liquids.

The Sensor is compatible with both pure water and mixtures of water and glycol without any problems.

Find the best-priced Belimo part that is compatible with your system at IACS.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to IACS to get personal ised guidance.

Electrical data	Power Supply DC	15...24 V, ±10%, 0.15 W
	Power Supply AC	24 V, ±10%, 0.3 VA
	Electrical connection	Plug for wire 0.5...1.5 mm²
	Cable entry	MVS plug according to DIN EN175301-803 / Type A
Functional data	Sensor Technology	Strain gauge on precious metal
	Output signal active pressure	DC 0...10 V
	Output signal active note	Voltage output: min. 5 kΩ load
	Mechanical connection	pressure connector: G1/4"
	Media	Water
Measuring data	Measured values	Pressure
	Accuracy pressure	±0.5% FS @ 25 °C
	Total errors	at maximum temperatures
		-40 °C: <= 2% FS
		105 °C: <= 2% FS
	Overload range	8 bar,
	Burst pressure	12 bar
Materials	Housing seal	FKM fluororubber, Silicone-free
	Housing	Stainless steel 1.4301

Optional accessories	Description	Type
	Adapter G 1/4" (internal thread) to G 1/2" (external thread)	A-22WP-A02
