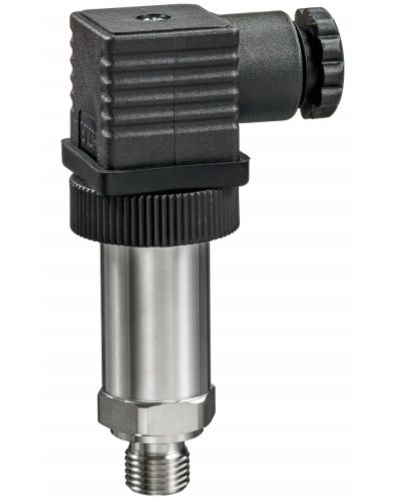

22WP-134 - Belimo Pressure Sensor for Liquids L=0...4 bar, 4...20 mA

£126.00 £105.00

On request

Next Supplier Stock Update: 17/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP65
Output Signal	4..20 mA
Manufacturer	Belimo
Power Supply	24Vac/Vdc
Sensor Type	Gas Pressure Transducer
Pressure range	0 to 4 Bar

Description

Visit IACS to find every part of your HVAC system. In stock Belimo Pressure Sensors may all be delivered with either Free or 1-2 Days Delivery.

The Belimo 22WP-134 is a Sensor that measures the Pressure of liquids in HVAC applications.

Both pure water and water/glycol combinations can be used with the Sensor.

The ideal Belimo accessories for your system are most affordable at IACS.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email IACS for individual ised support.

Electrical data	Power Supply DC	15...24 V, ±10%, 0.5 W
	Electrical connection	Plug for wire 0.5...1.5 mm²
	Cable entry	MVS plug according to DIN EN175301-803 / Type A
Functional data	Sensor Technology	Strain gauge on precious metal
	Output signal active pressure	4...20 mA
	Mechanical connection	pressure connector: G1/4"
	Media	Water
Measuring data	Measured values	Pressure
	Accuracy pressure	±0.5% FS @ 25 °C
	Total errors	at maximum temperatures
		-40 °C: <= 2% FS
		105 °C: <= 2% FS
	Overload range	8 bar,
	Burst pressure	12 bar
Materials	Housing seal	FKM fluororubber, Silicone-free
	Housing	Stainless steel 1.4301

Optional accessories	Description	Type
	Adapter G 1/4" (internal thread) to G 1/2" (external thread)	A-22WP-A02
