SKU
22WP-137

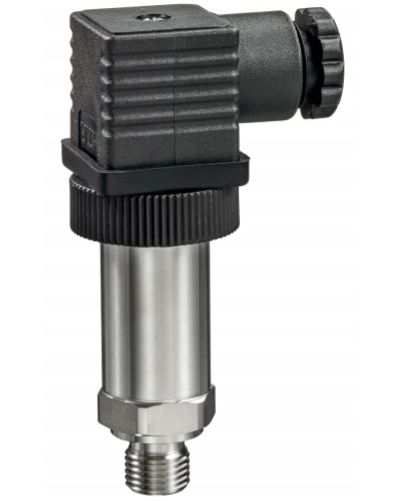

22WP-137 - Belimo Pressure Sensor for Liquids L=0...16 bar, 4...20 mA
£126.00
£105.00
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
|
MANUAL |
MOUNTING INSTRUCTIONS |
BROCHURE |
 |
|
|
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Gas Pressure Transducer |
| Pressure range | 0 to 16 Bar |
Visit IACS to find every part of your HVAC system. In stock Belimo Pressure Sensors may all be delivered with either Free or 1-2 Days Delivery.
The Belimo 22WP-137 is a Sensor that measures the Pressure of liquids in HVAC applications.
The Sensor is compatible with both pure water and mixtures of water and glycol without any problems.
The ideal Belimo accessories for your system are most affordable at IACS.
If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email IACS for individual ised support.
| Electrical data | Power Supply DC | 15...24 V, ±10%, 0.5 W |
| Electrical connection | Plug for wire 0.5...1.5 mm² | |
| Cable entry | MVS plug according to DIN EN175301-803 / Type A | |
| Functional data | Sensor Technology | Strain gauge on precious metal |
| Output signal active pressure | 4...20 mA | |
| Mechanical connection | pressure connector: G1/4" | |
| Media | Water | |
| Measuring data | Measured values | Pressure |
| Accuracy pressure | ±0.5% FS @ 25 °C | |
| Total errors | at maximum temperatures | |
| -40 °C: <= 2% FS | ||
| 105 °C: <= 2% FS | ||
| Overload range | 8 bar, | |
| Burst pressure | 12 bar | |
| Materials | Housing seal | FKM fluororubber, Silicone-free |
| Housing | Stainless steel 1.4301 |
| Optional accessories | Description | Type |
| Adapter G 1/4" (internal thread) to G 1/2" (external thread) | A-22WP-A02 |
