SKU
ASIT030000

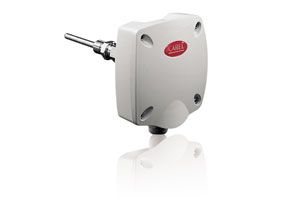

ASIT030000 - Carel Active Probe for immersion temp. range -30T90 deg. C.
£248.22
£206.85
On request
Next Supplier Stock Update: 18/10/2026
Manuals & Datasheets
| MANUAL | DATA-SHEET |
 |
|
| Product type | Sensors & Stats |
| IP rating | IP55 |
| Output Signal | 0..1 Vdc, 4..20 mA |
| Manufacturer | Carel |
| Sensor Type | Temperature |
| Sensor characteristics | Immersion |
ASIT030000 - Active Probe for immersion temp. range -30T90 deg. C.
Temperature probes: external (ASET*), immersion (ASIT*)
The external probes are designed for general applications with sensor cable lengths from 2÷4 m. If current output
is selected the probe can be remote-controlled up to a distance of 200 m.
The immersion probes are designed for installation within refrigeration or heating circuits, as the sensitive element
is in direct contact with the fluid being controlled. The temperature sensors used in this case are Pt1000 class B. -
|
TECHNICAL FEATURES |
|
|
|
|
|
Power supply |
9 to 30 Vdc or
12 to 24 Vac (-10% to +15%), 50/60 Hz |
|
Operating conditions |
-10T70 °C, <90% rH
non-condensing |
|
Storage conditions |
-20T70 °C, <90% rH
non-condensing |
|
Range |
-30T90 °C |
|
Precision |
25 °C: ±0.5 °C; -30T90 °C: ±1 °C |
|
Output signals |
-0.3 to 1 V; 4 to 20 mA |
|
Time constants |
200 s (still air); 45 s (3 m/s) |
|
Index of protection |
IP55 (case); IP67 (sensor) |
