SKU
AX-GS-CD-D8041

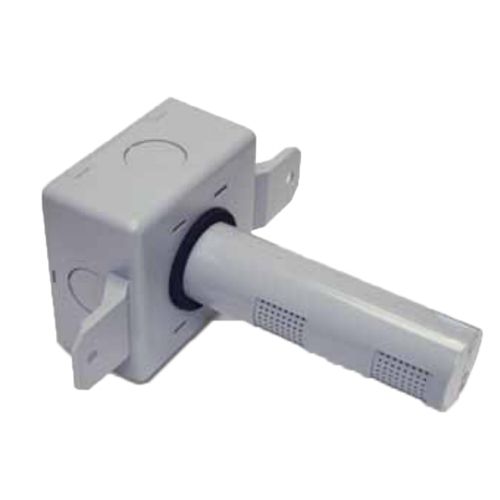

AX-GS-CD-D8041 - Axio CO2 Duct Mounted sensor - 105 mm probe length
£197.99
£164.99
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Sensors & Stats |
| IP rating | IP30 |
| Output Signal | 0..10Vdc, 4..20 mA |
| Manufacturer | Axio |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Air Quality |
| Sensor characteristics | Duct Mounted |
AX-GS-CD-D8041 - CO2 Duct Mounted sensor - 105 mm probe length
These Duct Carbon Dioxide and Temperature Sensors are easy to install and maintain. The units can output the CO2 as a 0-10V or 4..20mA signal with the option of thermistor temperature output. The units have a lifetime calibration interval.
Product Specifications:
- ABC self-calibration logic
- Two probe lengths available
- Ships with mounting screws
- Thermistor output available
| Sensor Type | Non-dispersive Infra-red |
| Range | 0-2000ppm standard |
| in 500ppm steps | |
| Power Supply | 20 to 30Vac/dc @80mA max |
| Calibration Interval | 5 years |
| Accuracy | +/- 75ppm or 3% whichever is greater |
| Stability | 20ppm signal loss per year |
| Output | 0-10Vdc or 4-20mA link selectable (modbus output available at additional cost) |
| Settling Time | <2 minutes after power up |
| Response Time | <60seconds for 90% step change |
| Ambient Temp. Range | 0 to +50’C , 0-95%RH |
| Housing | Material Flame retardant ABS |
| Room Dimensions | 127 x 91 x 43 mm |
| Duct Dimensions | 183 x 124 x 43 mm |
| Conformity | CE marked, EMC, LVD. |
| Country of Origin | Canada |
- Output-Passive: Range of two wire thermistor and PTC platinum elements providing variable resistance
- Output Active - Current: 4-20mA representing -10°C to 90°C (unless specified otherwise)
- Accuracy: Given Below
- Thermistor: +/- 0.2°C between 0°C and 70°C
- Platinum: +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
- Active: +/- 0.1% of range
- Material: VO Rated Flame Retardant ABS
- Terminals: Rising Clamp for 0.5-2.5mm2 Cable
- Ambient Temp: 0°C to 70°C 0-95% RH
- Dimensions: Housing: 90 x 90 x 52mm
- Probe: 65 x 7 mm diameter
- Overall : 115mm length
- Pocket: 65 x 7.2mm 1/2" BSP Thread
- Country of Origin: United Kingdom
