AX-PI-A - Axio This product has now been Phased Out

This product has now been phased out - Please contact us for the relevant replacement [email protected]

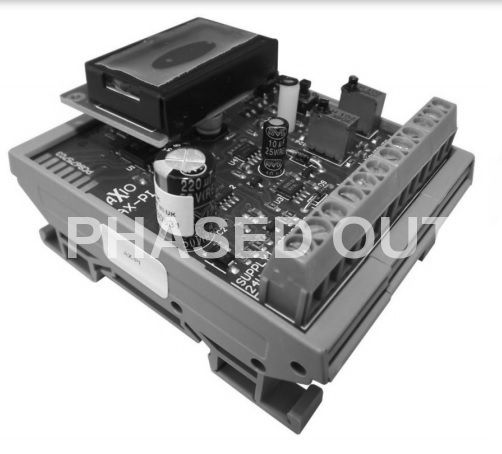

AX-PI - DIN rail PI controller with a 0..10Vdc Input

• Two analogue outputs - heating and/or cooling
• Adjustable proportional and integral control
• LCD display of temperature, setpoint, min, max etc
• Outputs configurable as 0-10V or 2-10V
• Integrator can be turned off for proportional only control
• Low limit input (e.g. frost protection facility)
• Setpoint range -10˚C to +110˚C
• Remote setpoint option (1-11kΩ or 0­10V)
• Adjustable setback
• DIN rail carrier as standard

The Axio AX-PI is a microprocessor based temperature controller with a two line LCD display to simplify setting up. The unit controls temperature between -10°C to +110°C using configurable heating and cooling stages, with adjustable proportional and integral parameters. The set point can be adjusted locally using push buttons or remotely with a potentiometer. A setback input is provided for use with an external switch. There is also a low limit sensor input. The minimum and maximum temperatures values are stored for display via the menu. The AX-PI is provided in a DIN rail carrier and is 24Vac/dc powered.

• Input Signal: 0-10V dc (1mA max)
• Output Contacts: 2 x Triac - zero cross switching - AC switching only
• Output Rating: Maximum 240V @1kW (500W per output in High/Low or Binary Mode
• Power Supply: 24Vac /dc
• Power Consumption: 80 mA max@24Vac
• Mode of Operation: Raise/Lower, High/Low, Binary, Single stage Timer
• Two stage Timer
• Manual Override: ON/OFF/AUTO (Link Selectable)
• Timer: AX-RM2T-SSR 0 to 30 seconds per stage
• AX-RM2T-SSR/2 0 to 240 seconds per stage
• Terminals: Rising Clamp for 0.5-2.5mm2 Cable
• LED Indicators: ON when triac energised
• Ambient Temp. Range: 0 to 50degree C
• Dimensions: 83mm (l) x 46mm (w) x 50mm (h) (approx.)
• Weight: 60 gms
• Country of Origin: United Kingdom
