The Belimo CH230-L100.2 is a kind of Actuator used in HVAC applications and air ventilation systems.

The Torque used by the CH230-L100.2 is 125 N.

This Belimo Actuator requests a power supply of 230Vac.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

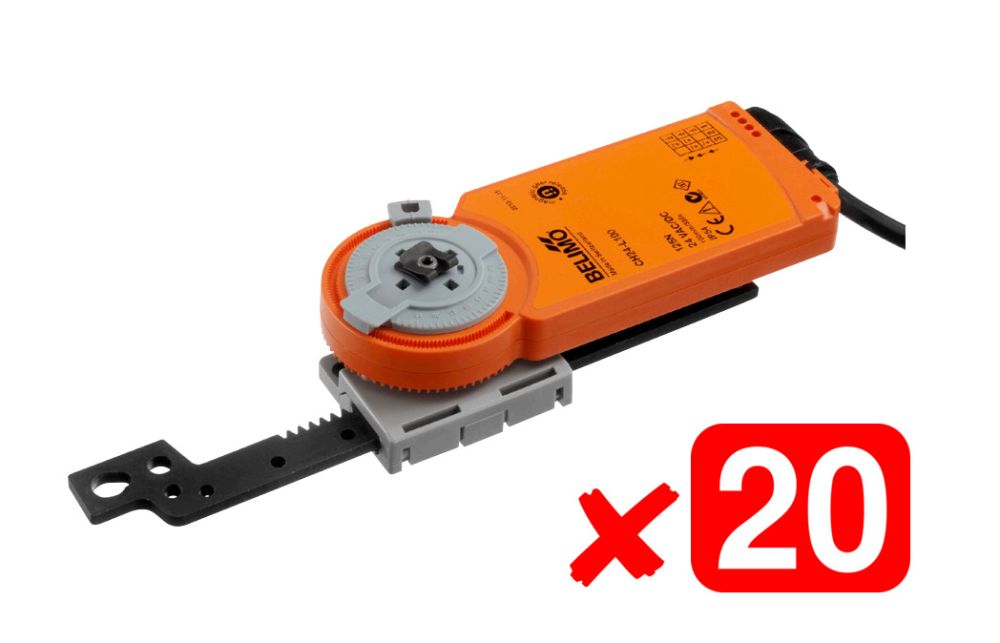

CH230-L100.2 Linear Actuator with Rack, AC 230 V, 380 s (Multipack 20x)

• 125 N, 380 s / 100 mm
• AC 230 V, Open/Close, 3-point
• Stroke range 0...100 mm
• IP 54, Manual override Gear disengagement with magnet
• Control with single- / 2-wire contact
• Connection PVC cable 1m
• Multi-pack 20 pieces

Simple direct mounting: The actuator can be directly connected with the application using the enclosed screws. The head of the gear rod is connected to the moving part of the ventilating application individually on the mounting side or with the Z-KS2 coupling piece provided.

Manual override: Manual override with magnet possible (gear disengagement as long as the magnet adheres to the magnet symbol). The Z-MA magnet for the gear disengagement is enclosed.

Adjustable stroke: If a stroke limitation will be adjusted, the mechanical operating range on this side of the gear rod can be used starting with an extension length of 20 mm and then can be limited respectively in increments of 20 mm by means of mechanical end stops Z-AS2. If the stroke limiters are used with the motor (with end stop clip Z-ESCM), the operating range can be limited on both sides. It can be adjusted in increments of 0.5 mm (calculatory 0.55 mm) von 0...40/60/67.5 mm.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Electrical data:

• Nominal voltage AC 230 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 85...265 V
• Power consumption in operation 1.5 W
• Power consumption in rest position 1 W
• Power consumption for wire sizing 3 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Parallel operation Yes (note the performance data)

Functional data:

• Actuating force motor Min. 125 N
• Direction of motion motor Selectable through contact assignment
• Manual override Gear disengagement with magnet
• Length of Stroke Max. 100 mm, adjustable in 20 mm increments
• Stroke limitation can be limited on both sides with mechanical end stops
• Running time motor 380 s / 100 mm
• Sound power level motor 35 dB(A)

Safety:

• Protection class IEC/EN II Protective insulated
• Degree of protection IEC/EN IP54
• EMC CE according to 2004/108/EC
• Low voltage directive CE according to 2006/95/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 2.5 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: 0.36 Kg
