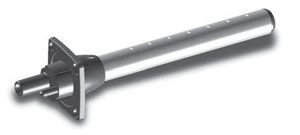

DP105D30R0 - Carel inlet Ø= 30 mm, l= 1,050 mm

The DP105D30R0 - inlet Ø= 30 mm, l= 1,050 mm is distributor pipes are mounted in the center with the holes facing up.

They must be mounted completely level in the duct with the steam outlet holes facing up as shown above.Support the end of longer distributor pipes if needed. Generally the distributor pipes should be mounted in the center of the air stream with a minimum of 6" from the center of the distributor pipe to the top of the duct and 3" minimum to the bottom. In vertical ducts, the distributor pipes are mounted in the center with the holes facing up. The airflow may be up or down, but when the airflow is down, maximum velocity is 1,500 fpm.

Note: End support bracket is only supplied with distributors of 36" and larger length.
