SKU
DPPC212000

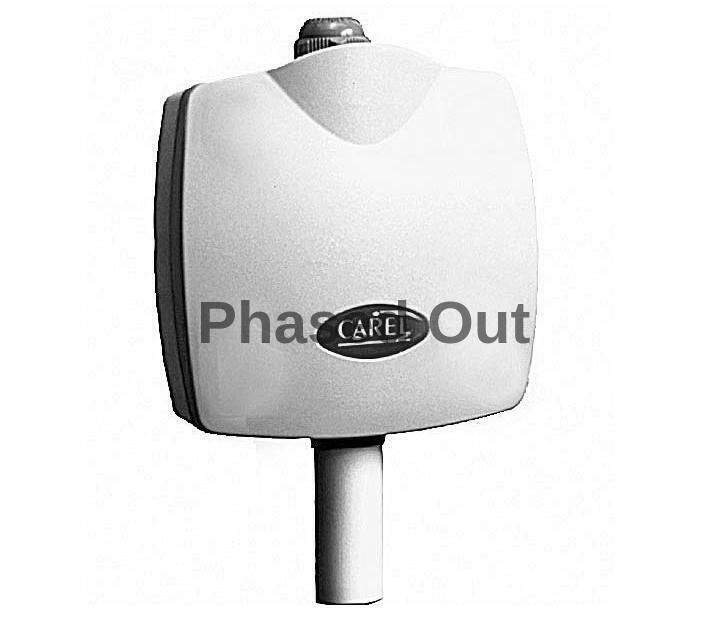

DPPC212000 - Carel Temperature (-20T70 °C) and humidity (0 to 100% rH) sensor for industrial environment (OUT 0-10VDC)
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
| MANUAL | DATA-SHEET | BROCHURE |
 |
|
|
| Product type | Sensors & Stats |
| IP rating | IP55 |
| Output Signal | 0..10Vdc |
| Manufacturer | Carel |
| Power Supply | 24Vac/Vdc |
| Sensor Type | Temperature and Humidity |
| Sensor characteristics | Wall Mounted, Duct Mounted |
DPPC212000 - This has been phased out: Replaced by the DPUS210000
DPPC212000 - Temperature (-20T70 °C) and humidity (0 to 100% rH) sensor for industrial environment (OUT 0-10VDC) The CAREL DP series electronic probes are designed for air-conditioning and air handling, heating and refrigeration applications, to be used in combination with the corresponding CAREL controllers. Versions are available for rooms, industrial environments and ducts. These differ in terms of assembly, the type of output signal and the models: temperature, humidity or combined. Versions are available with temperature output with resistive NTC.
-
|
TECHNICAL SPECIFICATION |
|
|
|
|
|
Power supply |
12 to 24 Vac +/-10% or 8 to 32 Vdc (min-max) |
|
Power input |
direct serial version type-max: 5 to 12 mA @ 12 Vdc power supply opto-isolated serial
version type-max: 14 to 20mA @ 12 Vdc power supply |
|
Temperature sensor Humidity sensor |
NTC 10Kohm at 25 °C 1% Capacitive sensor |
|
Storage |
-20T70 °C ; 20 to 90%rh non-condensing |
|
Output signal |
RS485 serial |
|
Environmental pollution |
normal |
|
Case index of protection |
IP55 |
