SKU
E3V35CWM00

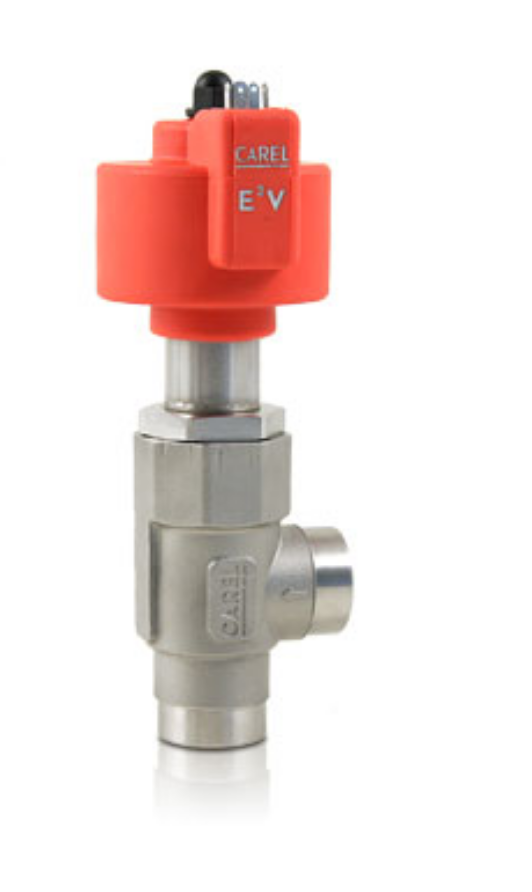

E3V35CWM00 - Carel Electronic Expansion Valve E3V-35C 5/8" Steel High Pressure for CO2
£1,009.87
£841.56
On request
Next Supplier Stock Update: 18/10/2026
Manuals & Datasheets
| MANUAL | DATA-SHEET |
EEV SELECTION GUIDE |
BROCHURE | APPLICATION NOTES | CROSS REFERENCE TABLE |
 |
|
|
|
|
|
| Product type | Expansion Valves & Drivers |
| Manufacturer | Carel |
| ExV Valve type | E2V standard |
The E3V-C electronic valve is used as the pressure controller in transcritical circuits with CO2 refrigerant (R744). Only CAREL control devices should be used to manage the E3V-C
Compatibility R744 (not be used with mineral oils)
Maximum Operating Pressure (MWP) 140 barg (2031 PSIg) - (UL/CSA, MWP=1740PSIg/120 barg)
Maximum Operating DP (MOPD) 90 barg (1305 PSIg)
P.E.D Gr. 2, art. 4, par. 3
Refrigerant temperature -40T65 °C (-40T149 °F)
Room temperature -30T50 °C (-22T122 °F
An online selection tool for the ExV Valves is available HERE.
Before you can use this tool, will need to create a UserID and passwords on KSA.| Phase current | 450 mA |
| Drive frequency | 50 Hz (up to 150 Hz for emergency closing) |
| Phase resistance (25°C / 77°F) | 36 Ohm ± 10% |
| Index of protection | IP67 with E2VCAB*** |
| Step angle | 15 ° |
| Linear advance/step | 0.02 mm (0.001 inches) |
| Connections | 4 wires (AWG 18/22) |
| Complete closing steps | 500 |
| Control steps | 480 |
