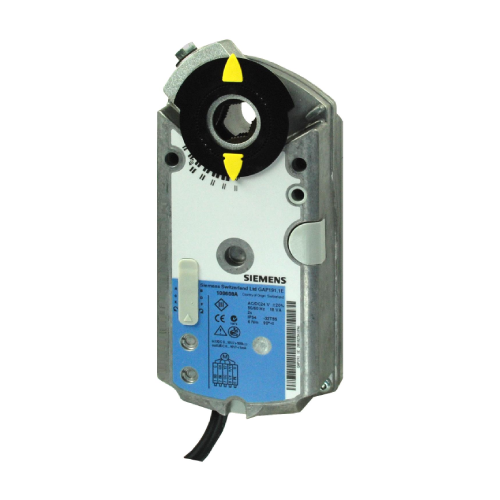

GAP196.1E Siemens AC/DC 24 V, 2-position, 3-position or DC 0-10V, 6 Nm non spring return rotary damper actuator with 2 auxillary switches for Lab applications, 2s

£233.99 £194.99

On request

Next Supplier Stock Update: 18/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Actuator
Manufacturer	Siemens
Power Supply	24Vac/Vdc
Torque	6 Nm
Actuator type	Rotary
size	81 x 192 x 63 mm

Description

All of the Siemens Actuators that are in stock at IACS are delivered within 5 to 7 working days.

The Siemens GAP196.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.

The Torque force applied by the GAP196.1E is 6 Nm.

The Power Supply requested for this damper Actuator is 24Vac/Vdc.

You may find the ideal Siemens Actuator for your system at IACS for a reasonable price.

If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email IACS for individualised support.

GAP Actuators
Fast runner rotary version, AC/DC 24 V
● Electromotoric actuator for 2-position, 3-position, or modulating control
● Nominal torque 6 Nm at 2 s running time
● Self-centering shaft adapter
● Range mechanically adjustable between 0…90°
● Prewired with 0.9 m long standard connection cables
● GAP196.1E with adjustable auxiliary switches for auxiliary functions

● For damper areas up to ca. 1 m2
, friction dependent
● For laboratory fume hoods, etc.
● Suitable for use with continuous, 2-position, or 3-position controllers
