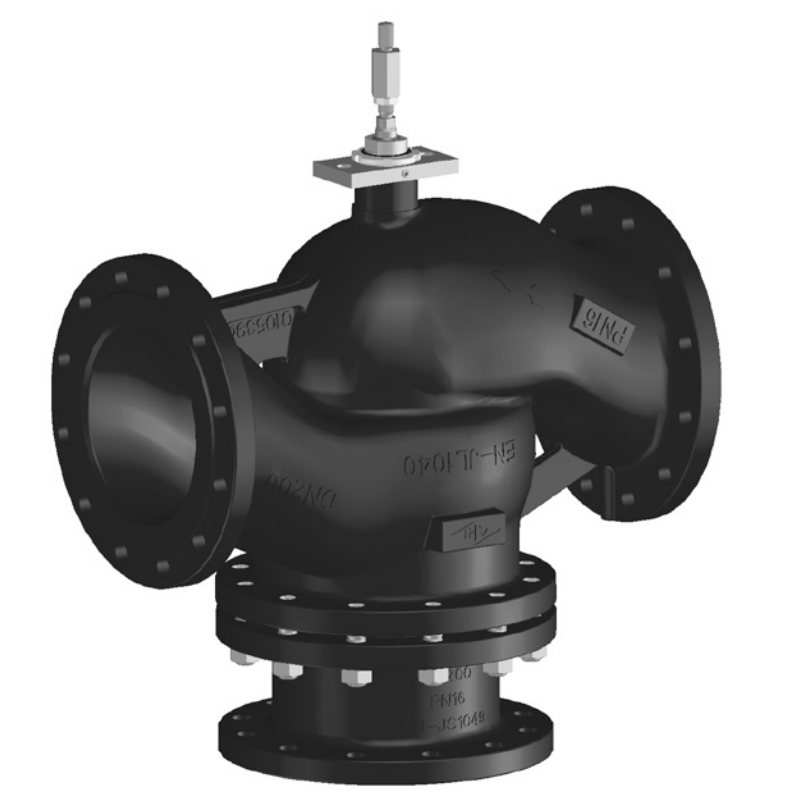

H7200W630-S7 - Belimo 3-way globe valve, PN16 flange, DN 200, kvs 630 Stem/bypass-seat stainless steel

All in-stock Belimo Globe Valves with iacs are delivered for free or within 1-2 days.

The Belimo H7200W630-S7 is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve.

The Pressure Nominal of this Valve is PN 16.

This H7200W630-S7 Belimo Valve has 3 port opening connection.

IACS can help you get the best-priced Belimo Globe Valve for your system.

If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.

Features

• Mode of operation The large globe valve is adjusted by a large stroke actuator of the GV Series. The actuators are controlled by a commercially available modulating or 3-point control system and move the valve cone, which acts as a mixing device, to the opening position dictated by the control signal.


• Flow characteristic A linear flow characteristic is produced in the direction of flow by the profile of the valve cone. The bypass exhibits a linear characteristic curve.


• Manual Operation  The valve stem can be actuated manually with a handwheel on the large stroke actuator GV..

•    Functional data Media Cold and low temperature hot water Water with max 50% volume of glycol
•    Medium temperature (–10°C) +5°C ... +120°C (–10°C on request)
•    Authorised pressure ps 1600 kPa (PN 16)
•    Flow characteristic Control path A – AB: linear (VDI/VDE 2173) Bypass B – AB: linear (VDI/VDE 2173)
•    Rangeability Sv >50
•    Leakage rate Control path A – AB: Leakage Class III (DIN EN 1349 and DIN EN 60534-4) Bypass B – AB: max. 1% of the kvs value
•    Pipe connection Flange to ISO 7005-2 (PN 16)
•    Stroke 65 mm
•    Closing point Top (▲)
•    Installation position Standing to lying (in relation to the stem)
•    Maintenance Maintenance-free
•    Materials Fitting GG25
•    Valve cone Stainless steel
•    Valve stem Stainless steel
•    Seat Stainless steel
•    Stem seal EPDM ring
•    Dimensions and weights See «Dimensions and weights», page 3
•    Motorizing see general overview «The complete range of water solutions»
