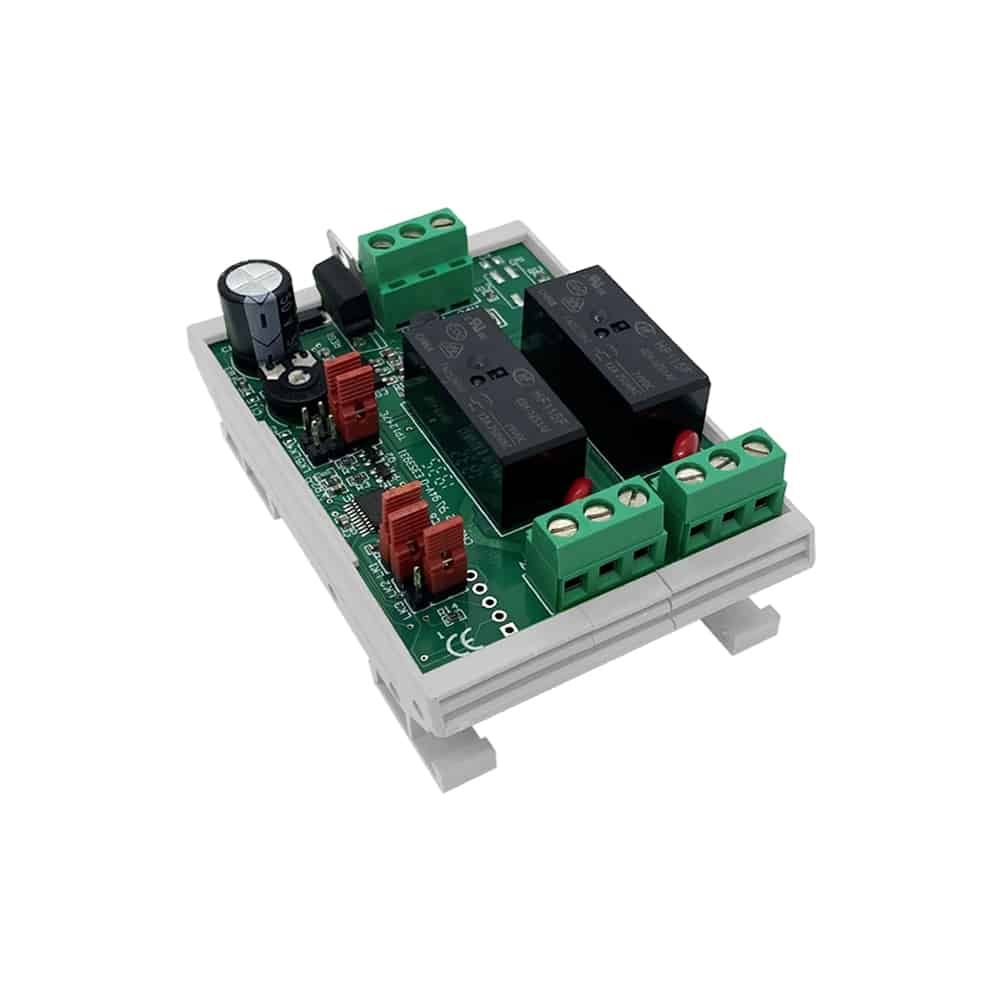

IO/2RM - Titan 2 Stage Relay Control

Used to convert an analogue 0-10 volt control signal to digital relay switching, the IO/2RM offers two selectable control options :- Option 1) Raise/Lower to operate a motorised valve, damper motor or step controller. Option 2) High/Low to provide two stage step switch control. The IO/2RM module is suitable for use with most BMS controllers such as Andover, Alerton, JEL, Trend, Satchwell, York etc.

FEATURES

* AC or DC Supply

* Converts 0-10 volts to relay control

* Low Current input 0.5mA max

* Two selectable output options

* Volt Free Changeover contacts

* LED status indication

* Off/Man/Auto Link Options

* DIN Rail mounting

SPECIFICATION
Input:- 0-10 Volts DC (load 0.5mA max)
Output Contacts:- Volt Free 5A at 240V ac (inductive)
Switching Volts:- See Table
Selectable Options:- - Raise/Lower or High/Low
- Off/Man/Auto
Power Supply:- 24V AC/DC (± 10% @ 55mA)
LED indication:- When relays energised
Terminals:- Max cable size 2.5mm
Operating Temperature:- -10 to + 40°C
Dimensions:- 82mm High
                          45mm Wide
                          50mm Deep
Mounting:- DIN Rail
