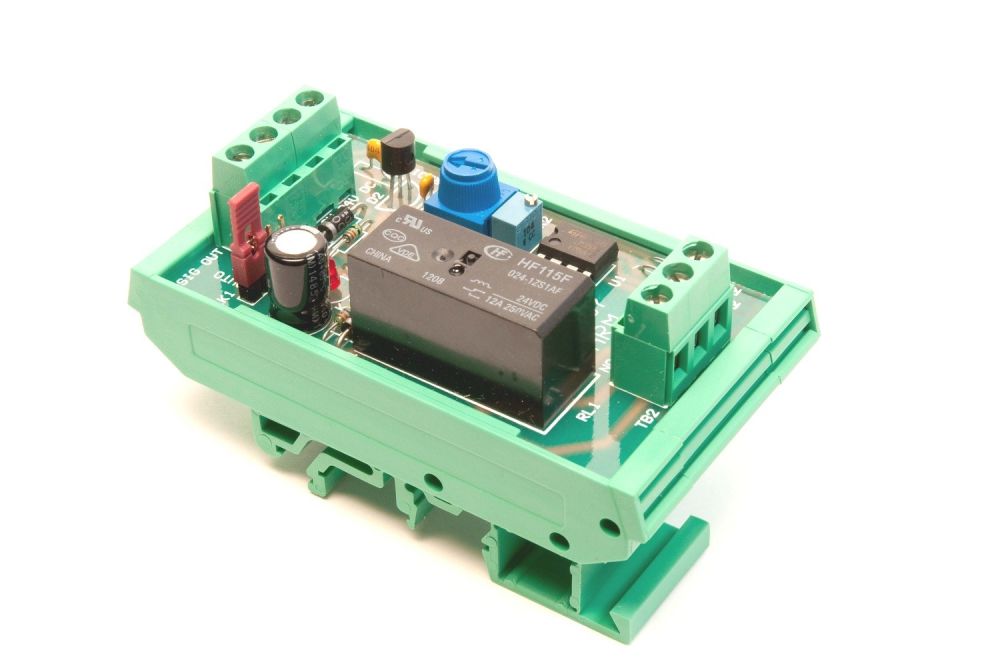

IO/ARM - Titan Adjustable Switching Relay

£33.60 £28.00

On request

SKU

IO/ARM

Next Supplier Stock Update: 29/05/2025

EXPLORE MORE VERSIONS AND ACCESSORIES

IO/DIM6-8 - Titan Digital Input Mutiplexer

£61.20 £51.00

IO/DIM4 - Titan Digital Input Mutiplexer

£42.00 £35.00

IO/DIM4/OI - Titan Digital Input Mutiplexer Opto-Isolated

£50.40 £42.00

Overview

Manuals & Datasheets

DATA-SHEET

Product type	I/O Modules
Input Signal	0..10 Vdc
Output Signal	1 Digital VFC
Manufacturer	Titan
Dimensions	82mm High 45mm Wide 50mm Deep

Description

The IO/ARM is designed to provide an adjustable switch point of a single relay output. The output relay is operated from a 0-10 Volt control signal with the switch point adjustable from 0.5 to 9.5 Volts and adjustable hysteresis. The IO/ARM also incorporates a slave 0-10 Volt control signal output that can be used to drive other controllers, interface modules or actuators. The IO/ARM power supply can be 24 Volts AC or DC and is suitable for use with most B.M.S. controllers.

FEATURES

* Single relay output with adjustable switch point 0.5 to 9.5 Volts.

* Adjustable hysteresis - 0.3 to 4.5 V

* Low current signal input 0.5mA.

* Slave 0-10 Volt output.

* Volt free change over contacts.

* LED status indication.

* Auto/Manual/Off link option.

* 24 Volts AC/DC supply.

* Din Rail Mounting.

Designed to provide an adjustable switch point of a single relay output. The output relay is operated from a 0-10 Volt control signal with the switch point adjustable from 0.5 to 9.5V and adjustable hysteresis. The IO/ARM also incorporates a slave 0-10V control signal output that can be used to drive other controllers, interface modules or actuators. The IO/ARM power supply can be 24V AC or DC and is compatible with most BMS controllers.

SPECIFICATION
Input signal                          0-10 Volts
Output                                   Volt free relay, 5A, 240V
                                               0-10 Volt slave 5mA max.
Adjustment    Relay operation 0.5 to 9.5 Volts
Hysteresis                           Adjustable 0.3 to 4.5 V
Power Supply                      24 Volts AC or DC
Power Consumption 30mA relay operation (supply)
                                               0.5mA control signal
LED indication    When relay operates
Terminals    2.0mm (max)
Operating Temperature    -10 to +40°C
Dimensions    82mm High
                                                 45mm Wide
                                                 50mm Deep
Mounting                                 DIN Rail
Order Code    IO/ARM
