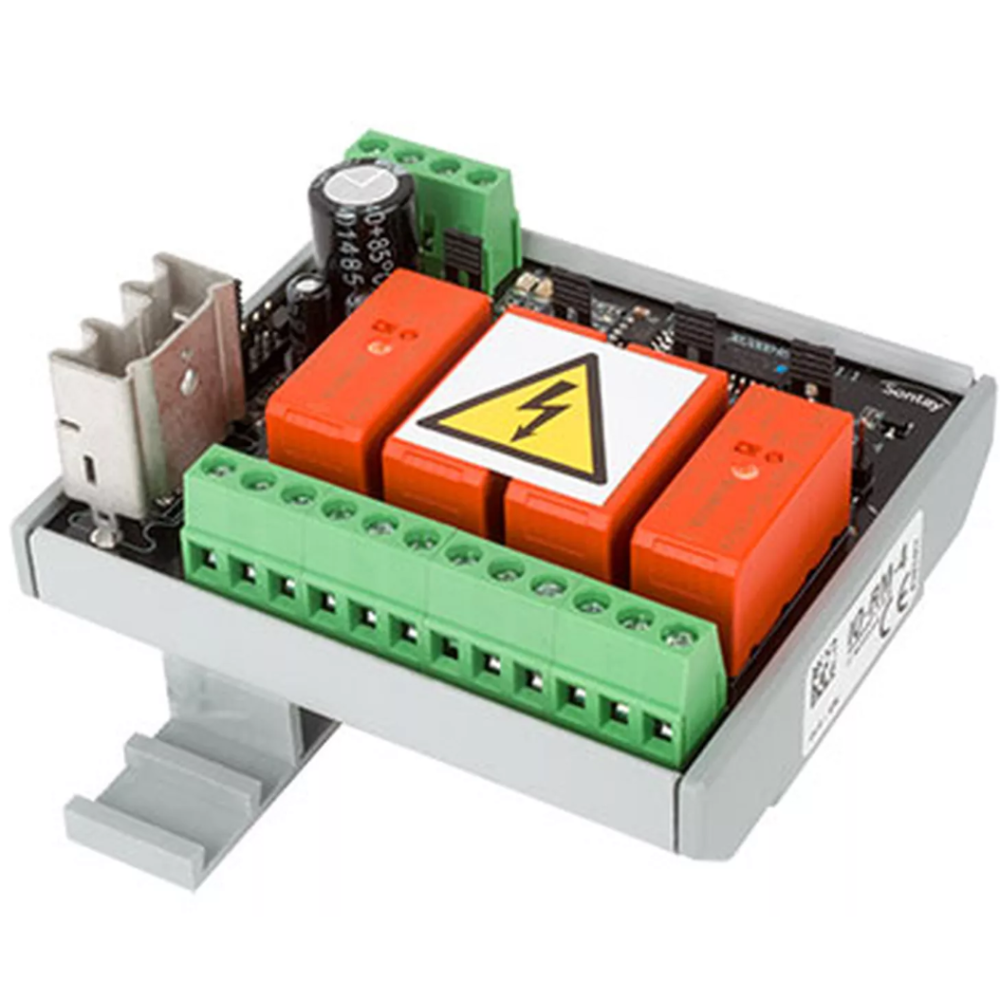

IO-RM-4 - Sontay 4-Stage Relay Module
£62.24
£51.87
On request
SKU
IO-RM-4
Next Supplier Stock Update: 07/06/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | I/O Modules |
| Input Signal | 0..10 Vdc |
| Output Signal | 0..10Vdc |
| Manufacturer | Sontay |
| Power Supply | 21Vdc to 40Vdc |
| Dimensions | 105 x 106 x 70mm |
Relay module with 4 switching outputs from 1 analog input.
Description
This range of relay modules is intended for use with BMS controllers to convert an analogue control output to various switching relay modes. Example applications include the control of raise/lower valves, damper actuators, pump changeover and boiler control. LEDs indicate correct operation and Hand/Off/Auto jumpers ease commissioning. Low current draw from 0-10Vdc controller output means that the IO-RM range works successfully with most BEMS controllers.
Features
- Fault finding LED indication
- Relay status LED indication
- Link selectable switching modes
- On/Off/Auto links for ease of commissioning
-
Input signal: 0-10Vdc
Output signal: 0-10Vdc direct or buffered
Max. output current: 20mA per channel in buffered mode
Power supply 21Vdc to 40Vdc 21Vac to 27Vac
Max. supply current
AC supply 260mA
DC supply 115mA
Fused output 24Vac @ 8A
Manual override Hand/Off/Auto
Jumper selectable
with screwdriver adjustment of
output voltage in ‘Hand’
position
Fuse 8A max.
Electrical connections Rising cage terminals for 0.5-
2.5mm²
Ambient -10 to 50°C (14 to 122°F)
Dimensions 105 x 106 x 70mm
(4.09 x 4.17 x 2.76”)
Country of origin UK
