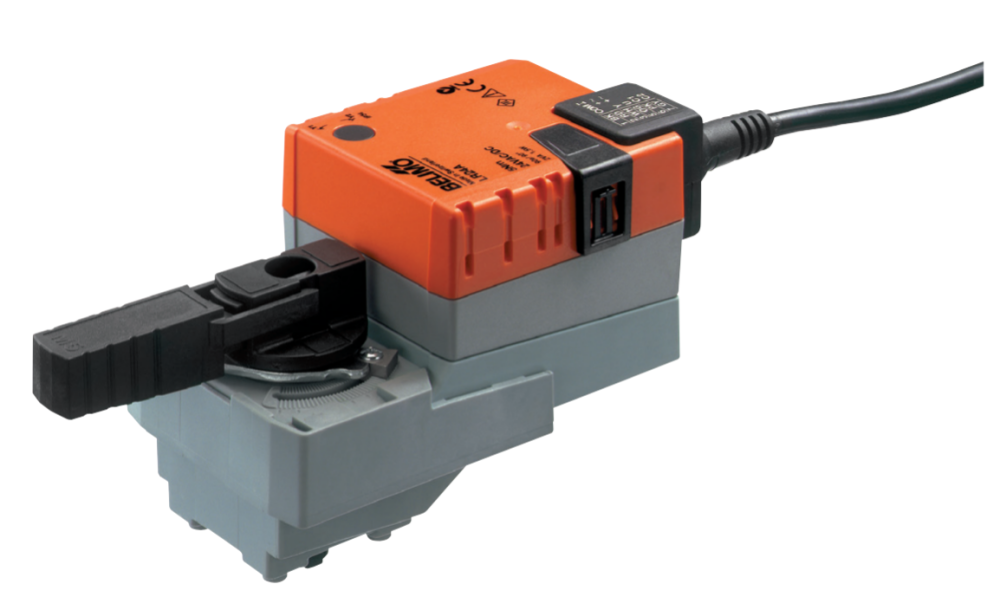

LRA-020 001 005 - Belimo Rotary actuator 5 Nm AC / DC 24 V

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo LRA-020 001 005 is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the LRA-020 001 005 is 5 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

LRA-020 001 005 - Rotary actuator 5 Nm AC / DC 24 V

•    Open/Close, 3-point
•    Running time motor 35 s / 90°
•    IP 54, Manual override temporary, permanent
•    Connection cable length = 1 m
•    Position indicator mechanical

Features


• Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool isintegrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.A minimum permissible angle of rotation of 30° must be allowed for.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the endstop is reached.



•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Power supply range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1 W at nominal torque
•     At rest 0.2 W
•     For wire sizing 2 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Parallel connection Possible, note performance data
•     Functional data Torque (nominal torque) Min. 5 Nm at nominal voltage
•     Manual override Gearing latch disengaged with pushbutton(temporary-permanent)
•     Running time 90 s / 90°
•     Noise level Max. 35 dB (A) (without the valve)
•     Position indication Mechanical, add-on
•     Safety Protection class III Extra low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (to EN 60730-1)
•     Rated impulse voltage 0.8 kV (to EN 60730-1)
•     Control pollution degree 3 (to EN 60730-1)
•     Ambient temperature range 0 ... +50°C
•     Media temperature +5 ... +110°C in (control) ball valve–10°C with stem heating upon request
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 550 g
