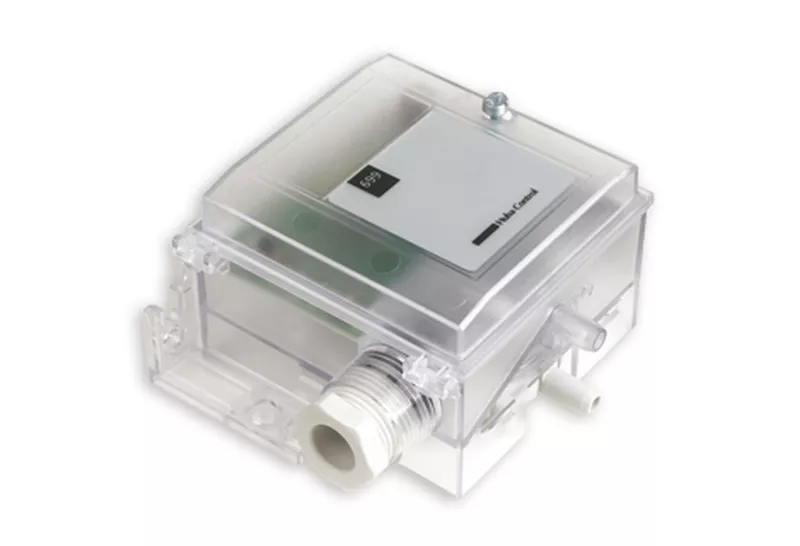

PA-699-01-V - Sontay Air DP Tx Multi-range +/- 0-30/50/100Pa 4-20mA, 0-10 V voltage output

£245.99 £204.99

On request

Next Supplier Stock Update: 17/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Sensors & Stats
IP rating	IP65
Manufacturer	Sontay

Description

Sontay’s range of field selectable multi-range differential pressure transmitters, incorporate a proven ceramic fulcrum lever technology for pressure measurement. The PA-699 has three field selectable ranges in one unit, providing versatility for a multitude of applications.

Features

Adjustable measurement range
Compact construction
IP65 housing
Duct fixing kit included

SPECIFICATIONS:

Accuracy, total of linearity, Hysteresis & repeatability & fs:

PA-699-01 to 04 ±1.0 max.

Others ±0.6

Thermal effect TC zero point TC sensitivity

Typical % fs/10K

PA-699-01 ±0.02 ±0.03

PA-699-02 ±0.02 ±0.03

PA-699-03 ±0.02 ±0.02

PA-699-04 ±0.01 ±0.01

Others ±0.01 ±0.01

Rupture pressure 2 x Overload @ ambient temp.

Power supply:

Current output 11 to 33Vdc

Voltage output 13.5 to 33Vdc or 24Vac ±15%

Current consumption:

Current 20mA

Voltage <10mA

Pressure connections Push fit for 6.2mm ID tube

Electrical connections Screw terminals for 1.5mm² max.

Housing construction:

Housing Polycarbonate PC

Diaphragm Silicone

Sensor Al2O3 (96%) / glass

Temperature:

Medium 0 to 70°C (32 to 158°F)

Ambient 0 to 70°C (32 to 158°F)

Storage -10 to +70°C (14 to 158°F)

Dimensions 92 x 75 x 51mm (3.62 x 2.95 x 1.89”)

Protection IP65

Country of origin Switzerland
