PGTA00TRF0 - Carel PGD Touch power supply 230Vac-24Vac/dc

£153.55 £127.96

On request

Next Supplier Stock Update: 17/10/2026

Manuals & Datasheets

MANUAL	LEAFTLET	BROCHURE

Product type	Accessory
Manufacturer	Carel
Accessory type	Power Supplies and Transformers
Programmable	Accessories

The PGTA00TRF0 - Power Supplt Transformer 230Vac to 24Vac or 24Vdc.

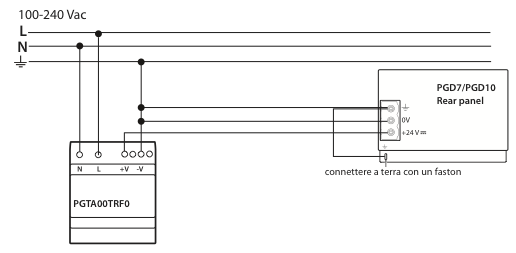

This Power Supply module can be used to power supply the PGD Touch displays 7" the 10.4" and the 13"

It is of course suitable for general products power supply that require 24Vdc or 24Vac.

Description	PGD TOUCH 7	PGD TOUCH 4 Rs485	PGD TOUCH 4 Full options
Carel code	PGDTM7000FR10	PGDT04000F000	PGDT04000FU20

CPU	600 MHz MIPS	500 MHz ARM Cortex A8	500 MHz ARM Cortex A8
OS	Windows CE 6.0	Windows CE 6.0	Windows CE 6.0
Flash memory	128 MB	128 MB	128 MB
RAM (DDR)	256 MB	256 MB	256 MB
Hardware RTC	battery backed	battery backed	battery backed

Display size	7’’	4.3’’	4.3’’
Display resolution	800x480 wide	480x272 wide	480x272 wide
LCD type	TFT 64K colors	TFT 64K colors	TFT 64K colors
Touch screen type	Resistive 4 wire	Resistive 4 wire	Resistive 4 wire
Backlight	LED	LED	LED

Buzzer	Yes	yes	Yes
Led	4 system led 1 user led	1 system led (g/r)	1 system led(g/r)

10/100 Ethernet	1	0	2 (integrated switch)
Rs485	2 not opto DB9 connector	1 not opto 3 pin removable screw connector P=5,08	1 opto 3 pin removable screw connector P=5,08
pLAN support	No	Yes	Yes
RS232	Yes	no	no
USB 2.0 host	1	1	1
SD card connector	no	no	Yes

Power supply	24 Vdc	24 Vac/dc	24 Vac/dc

Face plate size	147x187	109x149	109x149
Protection class	IP65	IP65	IP65
Temperature range Operating	0 to+50 °C	-20 to+60 °C	-20 to+60 °C
Temperature range Storage	-20 to +70 °C	-20 to +70 °C	-20 to +70 °C
