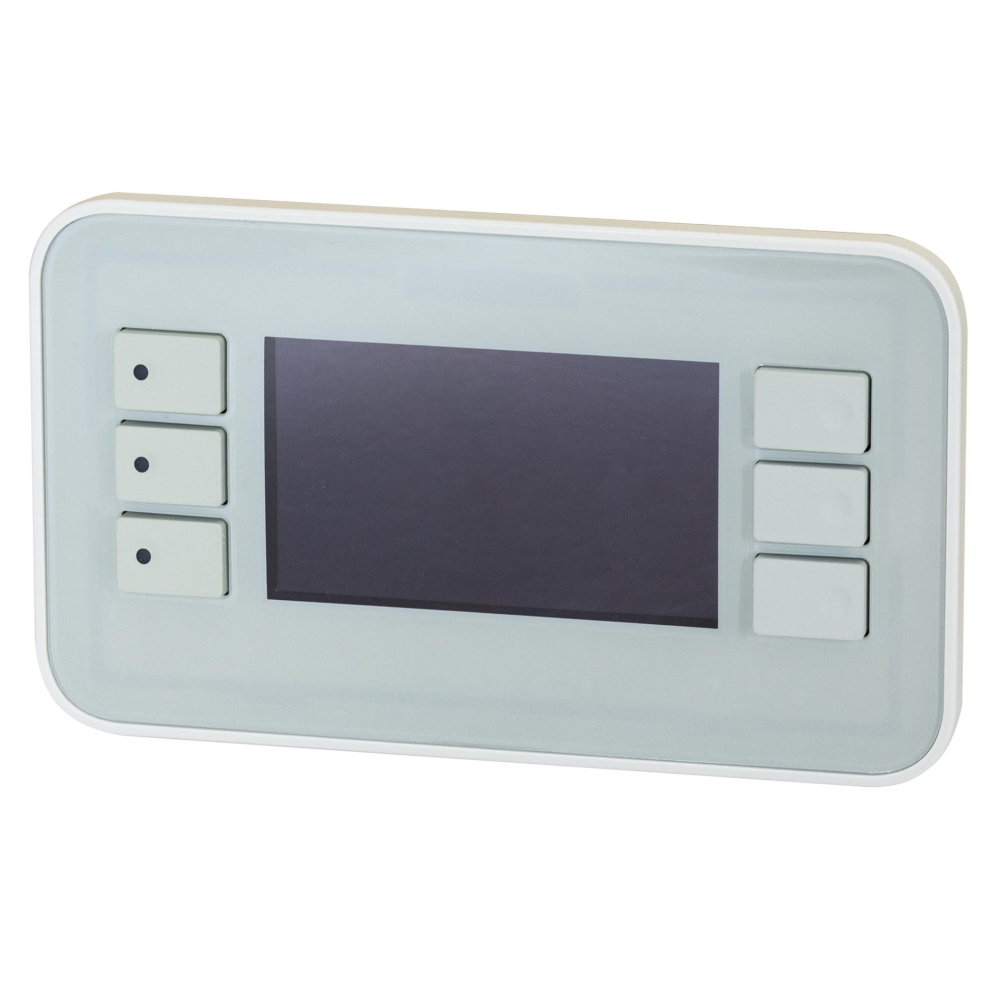

POL871.61/STD - Siemens Climatix Operating unit; buttons, 8-line Unicode display, backlight; magnetic back, IP65

The Siemens POL871.61/STD is the HMI-TM (Human Machine Interface Touch Mobile) operating unit for the Siemens Climatix controller range. Designed for advanced on-site operation, it provides a high-resolution backlit display and full access to data points, system configuration, and alarm management on Climatix POL4xx and POL6xx controllers.

Rated IP65 across the entire housing, the POL871.61 is suitable for use outside the control panel as a portable mobile unit or for magnetic mounting directly to the controller or panel door. It connects via the controller's local HMI port using the integrated 2.5 m spiral cable (RJ45), powered directly by the controller with no separate supply required.

Key Features:

• High-resolution 240 x 128 dot-matrix STN blue LCD with white LED backlight
• 6 navigation keys with dedicated ALARM, INFO, and CANCEL keys with LEDs
• IP65 protection across the entire unit, suitable for use outside the control panel
• Magnetic mounting and mobile operation via integrated 2.5 m spiral cable
• Powered directly by controller via local HMI connection (DC 24 V, 60 mA), no separate supply
• User passwords are configurable per access level
• Multi-language support
• Full data point access and local HMI settings
• Firmware upgradeable

Compatible Controllers The POL871.61 connects to Climatix POL4xx and POL6xx series controllers via the RJ45 local HMI port. For permanent panel installation, see the POL871.62/STD panel-mount variant.

Technical Specifications:

• Model: POL871.61/STD
• Siemens Stock Number: S55626-H516-B100
• Display Type: STN blue, negative, dot-matrix
• Display Resolution: 240 x 128 dpi
• LCD Size: 93 x 58 mm
• Backlight: White LEDs
• Keys: 6 (including ALARM, INFO, CANCEL with LEDs)
• IP Rating: IP65 (entire unit)
• Power Supply: DC 24 V, 60 mA (via controller)
• Connection: RJ45 local HMI port
• Cable: 2.5 m integrated spiral cable (1 m flat + 1.5 m expandable), 4-wire twisted pair
• Dimensions (W x H x D): 173.2 x 95.5 x 21.6 mm
• Weight (without packaging): 350 g
• Operating Temperature: -40...+70 °C (LCD limited to -20...+60 °C)
• Storage Temperature: -40...+70 °C; Humidity: 5–95% RH (non-condensing)
• Standards: IEC/EN 60730-1; CE, UKCA, RCM, UL, cUL
• Mounting: Magnetic / mobile

Typical Applications:

• On-site commissioning and configuration of Climatix AHU and HVAC plant controllers
• Mobile fault-finding and alarm inspection across multiple Climatix controllers on site
• External operator interface where panel-mount HMI is not required
• Sites requiring IP65-rated operator access outside the control enclosure

In the Box:

• 1x POL871.61/STD HMI-TM unit
• Integrated 2.5 m spiral cable with RJ45 plug (1 m flat + 1.5 m expandable, 4-wire twisted pair)

For the panel-mount variant with cutout installation and IP65 front rating, see the Siemens POL871.62/STD.
