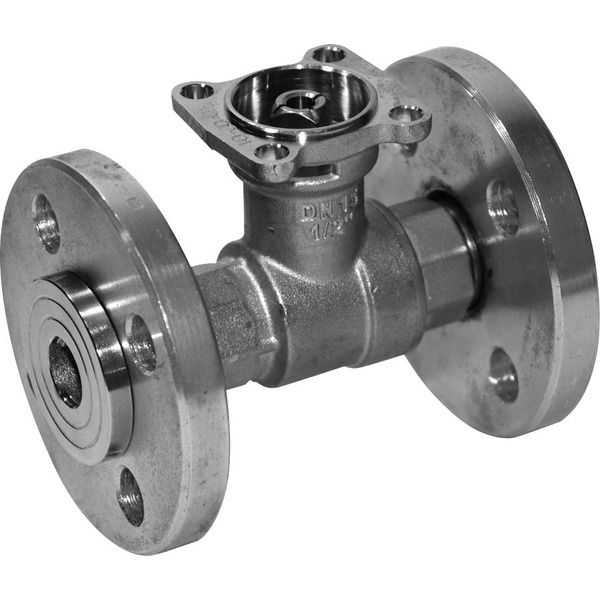

R6050R40-B3 - Belimo, 2-Way Characterised Control Valve, DN50, Flange, PN6, KVS 40

All in-stock Belimo ball Valves with iacs are delivered for free or within 1-2 days.

The Belimo R6050R40-B3 is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve .

The Pressure Nominal of this Valve is PN 6.

This R6050R40-B3 Belimo Valve has a 2 port opening connection.

IACS has the most economical Belimo Valves for your system.

If you have any issues about size or installation, please refer to the Belimo custom datasheet above or contact iacs for further information.

•     Functional data Flow media Cold and hot water, water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +110°C¹) (lower or higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173) n(gl): see «Type overview»
•     Rangeability Sv See «Type overview»
•     Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)
•     Pipe connector Flange PN 6 (to EN 1092/1)
•     Differential pressure Δp_vmax 100 kPa, Closing pressure Δp_s 600 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     Installation position Upright to horizontal (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Forged, nickel-plated brass body
•     Valve cone and stem Chrome-plated brass
•     Stem seal O-Ring, EPDM
•     Ball seat PTFE, O-Ring Viton
•     Characterizing disk TEFZEL
•     Flange ring DN 15 / 20: Zinc-plated steel DN 25 ... 80: Aluminum
•     Flange joint surface Nickel-plated brass
•     Dimensions / Weights see «Dimensions and weights», page 3
•     Motorizing see the complete overview of water solutions
•     ¹⁾The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
