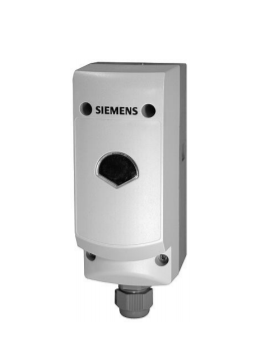

RAK-TW.1000S-H - Siemens Thermal reset limit thermostat, 15...95 °C, capillary tube 700 mm, clamping band

£65.99 £54.99

On request

Next Supplier Stock Update: 19/10/2026

Manuals & Datasheets

DATA-SHEET

Type Reference		Degree of protection	Temperature setting range	Capillary tube length	Scope of delivery	Pocket length
RAK-TW.1000S-H		IP43	15...95 °C	700 mm	Pocket (for RAK….B and P) / Clamping band for max. pipe dia. 100 mm (for RAK…B) / Cable gland M16x1.5 mm / Mounting instructions	-----

Thermal Reset Limit Thermostats RAK-TW.1..H RAK-TW.1..H.. Electromechanical TW according to DIN EN 14597

2-position thermal reset limit thermostat with single-pole changeover microswitch
Switching capacity contact connection 1-2: 16 (2.5) A, AC 250 V contact connection 1-3: 6 (2.5) A, AC 250 V
Time constant conforming to DIN EN 14597
3 mounting choices: pipe, pocket or wall mounting
Adjusted switch-off temperature can be checked through the viewing window in the housing
IP43 and IP65 protection class available
Push-in terminals for fast installation
