SBG24 - Belimo Range controller for wall mounting

Visit iacs for further details on each part of your ventilation system.

Currently in stock, all Belimo accessories can be delivered for free or within one to two days.

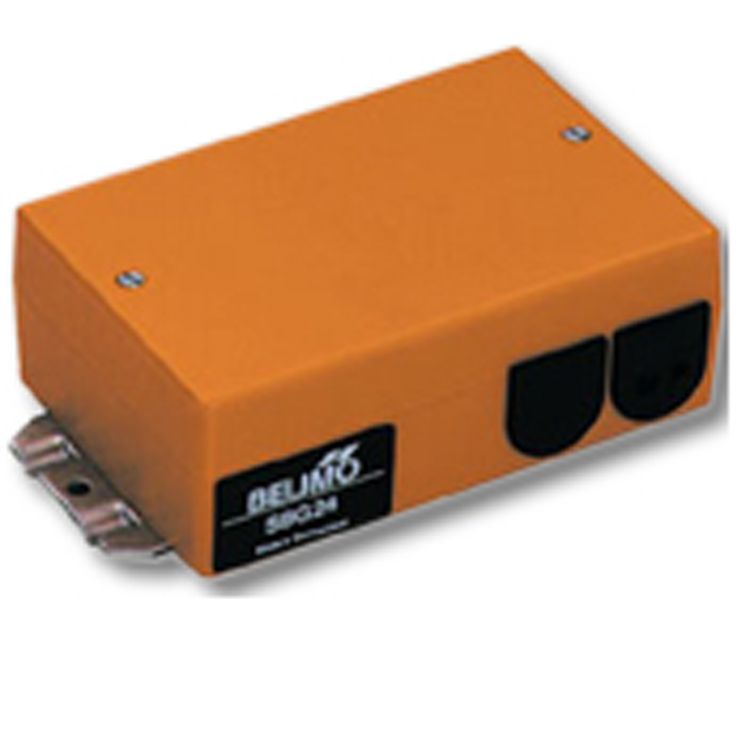

The Belimo SBG24 is a Range controller for wall mounting .

Iacs sells the most affordable Belimo system accessories.

Please see the aforementioned Belimo custom datasheet if you have any questions concerning installation or size. Please email iacs if you need more specialised support.

Features

• Application In central air handling units and other ducted systems, multiblade-dampers are mainly used as control and mixing damp ers. The control characteristics of damp ers, however, depend upon many factors. Even with correctly sized dampers and fans it is only possible to adjust the air volume with a universal adjustment kit.With the range controller SBG24, this is easily achieved, since the working range (|) of the dampers can be defi ned by the Min.-Max. setting potentiometer.The SBG24 is usually installed close to the damper actuator (and at the same time used as connection box).

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz
•     Nominal voltage range AC 21.6 ... 27.6 V
•     Power consumption 1 W + connected actuators, For wire sizing 1.5 VA + connected actuators
•     Connection Terminals
•     Functional data Control signal Y Y1: DC 0 ... 10 V Y2: 0 ... 20 V phasecut
•     Input impedance Y1: 100 kΩ (0,1 mA) Y2: 8 kΩ (50 mW)
•     Operating range Y1: DC 2 ... 10 V Y2: 2 ... 10 V phasecut
•     Direction of rotation Reversible (direct / reverse acting)
•     Positioning range Adjustable Max. = 0.2 ... 1 (~20 ... 90° rotation <) Min. = 0 ... 80% of Max
•     Override controlT to terminal 6 = position 0 (closed) ~ to terminal 6 = position 1 (open)
•     Measuring voltage U DC 2 ... 10 V (max. 0.5 mA) for position 0 ... 1
•     Output actuator Terminal 3: DC 2 ... 10 V (max. 0.5 mA)
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP40
•     EMC CE according to 89/336/EWG
•     Mode of operation Type 1 (to EN 60730-1)
•     Ambient temperature –20 ... +50°C

•     Humidity test To EN 60730-1
•     Maintenance Maintenance free
•     Dimensions / Weight Dimensions See «Dimensions» on pag
•     Weight Approx. 400 g
