SGA24 - Belimo Potentiometer 0..10Vdc with enclosure

Visit iacs for further details on each part of your ventilation system.

Currently in stock, all Belimo accessories can be delivered for free or within one to two days.

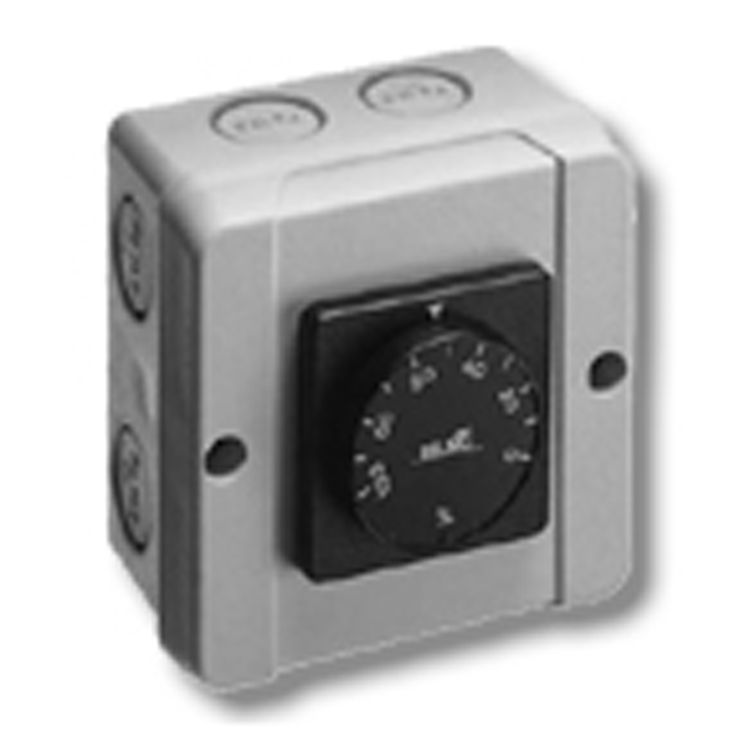

The Belimo SGA24 is a Potenziometer 010Vdc with enclosure .

The most affordable Belimo system upgrades are provided by Iacs.

Please refer to the aforementioned Belimo custom datasheet if you have any questions regarding installation or size. Send an email to iacs if you need more specialised assistance.

Features

• Application The positioner is intended for the remote control of modulating actuators or for use as a minimum positioner (providing a bottom limit for the output signals from modulating controllers).The control range is 0 … 100% of the angle of rotation of the actuator.


• Wide setting range The positioner receives its power supply through terminals 1 and 2.The position to which the rotary knob is turned produces a proportional control signal Y of either DC 2 … 10 V or DC 0 … 10 V and thus a proportional change in the position of the actuator between 0 and 100%. The angle of rotation of the knob can be limited mechanically.


• Simple changeover The changeover from DC 2 … 10 V to DC 0 … 10 V is selected by means of a slide switch on the printed circuit board.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V Vcc from ..M230ASR
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption 0.3 W For wire sizing 1VA
•     Power output For max. 10 actuators
•     Connection Terminals (for max. 1.5 mm2)
•     Functional data Control signal Y DC 2 ... 10 V @ max. 1 mA(DC 0 ... 10 V switchable by slide switch)
•     Scale 0 ... 100% (mechanical rotation limit by knob)
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP40 (IP54 with conduit connector)
•     EMC CE according to 2004/108/EC
•     Mode of operation Type 1.B (to EN 60730-1)
•     Ambient temperature range –20 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Humidity test To EN 60730-1
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 150 g
