SGF24 - Belimo Potenziometer 0..10Vdc for front-panel mounting

For more information on each component of your ventilation system, go to iacs.

All Belimo accessories are currently in stock and can be delivered for free or in one to two days.

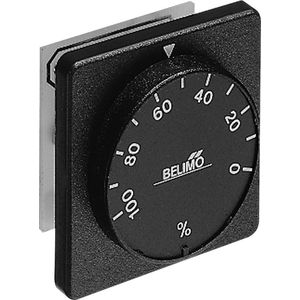

The Belimo SGF24 is a Potenziometer 010Vdc for front-panel mounting .

Iacs offers the most cheap Belimo accessories for your system.

If you have any inquiries about installation or size, please see the aforementioned Belimo custom datasheet or contact iacs via email for personalised assistance.

Features

• Application The positioner is intended for the remote control of modulating actuators or for use as a minimum positioner (providing a bottom limit for the output signals from modulating controllers).The control range is 0 … 100% of the angle of rotation of the actuator.


• Wide setting range The positioner receives its power supply through terminals 1 and 2.The position to which the rotary knob is turned produces a proportional control signal Y of either DC 2 … 10 V or DC 0 … 10 V and thus a proportional change in the position of the actuator between 0 and 100%. The angle of rotation of the knob can be limited mechanically.


• Simple changeover The changeover from DC 2 … 10 V to DC 0 … 10 V is selected by means of a slide switch on the printed circuit board.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V Vcc from ..M230ASR
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption 0.3 W For wire sizing 1VA
•     Power output For max. 10 actuators
•     Connection Terminals (for max. 1.5 mm2)
•     Functional data Control signal Y DC 2 ... 10 V @ max. 1 (DC 0 ... 10 V switchable by jumper slide switch)
•     Scale 0 ... 100% (mechanical rotation limit by knob)
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP40
•     EMC CE according to 2004/108/EC
•     Mode of operation Type 1.B (to EN 60730-1)
•     Ambient temperature range –20 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Humidity test To EN 60730-1
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 50 g
