SH230A300 - Belimo Linear Damper/Valve Actuator with rack

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo SH230A300 is a type of Actuator used in HVAC and ventilation systems.

The force applied by the Torque of the SH230A300 is 450 N.

This Rotary Actuator needs to be supported by a power supply of 230Vac.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

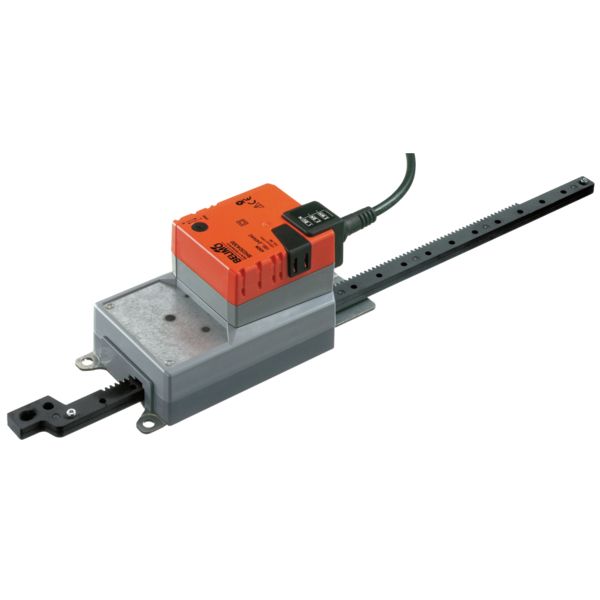

SH230A300 - Linear actuator with rack

•    450 N, 150 s / 100 mm / constant,
•    AC 230 V, Open/Close, 3-point
•    Stroke range 0...300 mm
•    IP 54, Manual override w. push-button
•    Control with single- / 2-wire contact
•    Connection PVC cable 1m

Features


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable stroke The stroke of the gear rack can be adjusted on both sides in increments of 20 mm by means of mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•     Power supply range AC 85 ... 265 V
•     Power consumption In operation 2.5 W @ nominal force At rest 0.6 W For wire sizing 6 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Actuating force 450 N @ nominal voltage
•     Stroke See «Overview of types»
•     Direction of stroke Reversible with switch 1 resp. 0
•     Running time 150 s / 100 mm
•     Sound power level <50 dB (A)
•     Safety Protection class II totally insulated
•     Degree of protection IP54 in any mounting position NEMA 2, UL Enclosure Type 2
•     EMC CE according to 2004/108/EC Low-voltage directive CE according to 2006/95/EC
•     Certification cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
•     Mode of operation Type 1
•     Rated impulse voltage 4 kV
•     Control pollution degree 3
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 3
•     Weight See «Overview of types»
