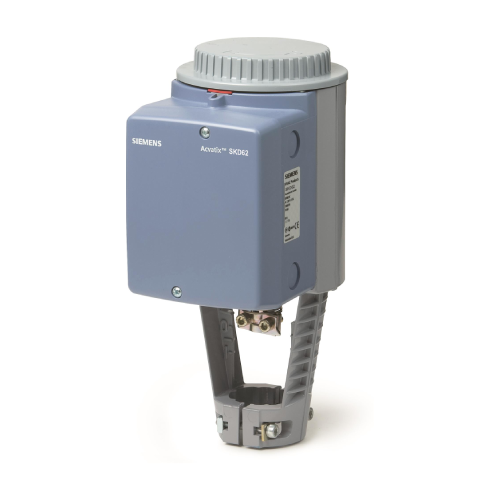

SKD62 - Siemens Valve Actuator 1000N | ideal for 2-port valves, 3-port valves, type series VVF, VVG, VXF and VXG | Operating Voltage AC 24 V
£479.99
£399.99
On request
SKU
SKD62
Next Supplier Stock Update: 13/06/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 1000 N |
| Ideal for | 2-port valves, 3-port valves |
| size | 127 x 300 x 169 mm |
We provide 5 to 7 Working Days Delivery for all Siemens Actuators that are in stock at IACS.
The Siemens SKD62 is a kind of Actuator used to operate Valve in HVAC applications and systems.
The force applied by the Torque of the SKD62 is 1000 N.
This Valve Actuator needs to be supported by a Power Supply of 24Vac/Vdc.
You may find the ideal Siemens Actuator for your system at IACS for a reasonable price.
If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email IACS for individualised support.
The Siemens SKD62 Valve Actuator is a high-quality device that is designed to provide precise positioning and control for valves in a range of industrial applications. With its robust construction, advanced features, and reliable performance, this actuator is an ideal choice for use in demanding environments.
Operating at AC 24 V, the SKD62 Valve Actuator is highly efficient and consumes just 14 VA of power, making it an energy-efficient choice for your facility. The actuator is equipped with a positioning signal that can be controlled using DC 0...10 V, DC 4...20 mA, or 0...1000 Ohm, providing excellent control over valve positioning.
With a positioning force of 1000 N and a stroke of 20 mm, the SKD62 Valve Actuator is capable of precise and accurate positioning of valves. The actuator has a positioning time of 30 s for open and 15 s for close, making it highly efficient in operation. Additionally, the actuator comes with a spring return function that operates in 15 s, ensuring that the valve is closed in case of power failure.
The SKD62 Valve Actuator is also equipped with a position feedback feature that allows for accurate monitoring and control of valve positioning. The feedback can be provided using DC 0...10 V or 4...20 mA signals, providing flexibility in control and monitoring.
With a degree of protection of IP54, the SKD62 Valve Actuator is highly durable and suitable for use in challenging environments. It can withstand medium temperatures of -25…150 °C and ambient temperatures of -15…50 °C. The actuator can be mounted in any position from upright to horizontal, making it highly versatile in use. With dimensions of 127 x 300 x 169 mm, the SKD62 Valve Actuator is compact and easy to install, making it an excellent choice for a range of industrial applications.
In summary, the Siemens SKD62 Valve Actuator is an advanced and reliable device that provides precise control over valve positioning in a range of industrial applications. With its advanced features, durable construction, and reliable performance, it is an excellent choice for use in demanding environments.
