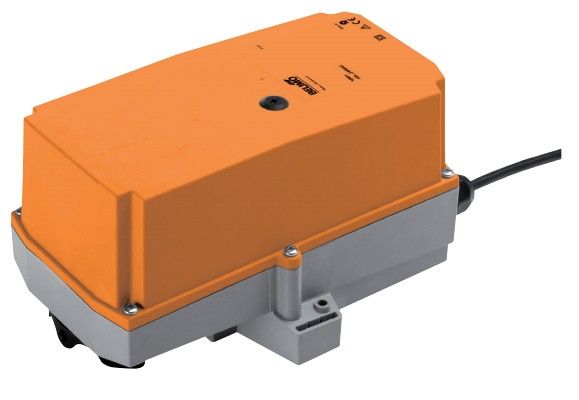

SM24P-MP Damper Rotary Actuator, 20 Nm, AC/DC 24 V, 150 s - Belimo

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo SM24P-MP is a kind of Actuator used to manage dampers in HVAC applications and systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the SM24P-MP is 20 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

The Belimo SM24P-MP is a damper actuator used to modify air dampers in ventilation and air-conditioning systems.

This specific type of actuator applies a rotary motion.

The control type of the SM24P-MP is modulating.

The Torque force is 20 Nm.

Fields of application: The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions: - Wood drying - Animal breeding - Food processing - Agricultural - Swimming baths / bathrooms - Rooftop ventilation plant rooms - General outdoor applications - Changing atmosphere - Laboratories

Resistances: Noxious gas test EN 60068-2-60 (Fraunhofer Institut ICT / DE) Salt fog spray test EN 60068-2-52 (Fraunhofer Institut ICT / DE) Ammoniac test DIN 50916-2 (Fraunhofer Institut ICT / DE) Climate test IEC60068-2-30 (Trikon Solutions AG / CH) Disinfectant (animals) (Trikon Solutions AG / CH) UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63 (Quinel / Zug CH)

Used materials :Actuator housing polypropylene (PP) Cable glands / hollow shaft polyamide (PA) Connecting cable FRNC Clamp / screws in general Steel 1.4404 Seals EPDM Form fit insert aluminium anodised

Mode of operation: Conventional operation: The actuator is connected with a standard modulating signal of DC 0...10V and drives to the position defined by the positioning signal. The measuring voltage U serves for the electrical display of the actuator position 0...100% and as slave control signal for other actuators. Operation on the MP-Bus: The actuator receives its digital positioning signal from the higher level controller via the MP-Bus and drives to the position defined. Connection U serves as communication interface and does not supply an analogue measuring voltage.

Converter for sensors: Connection option for a sensor (passive or active sensor or switching contact). The MP actuator serves as an analogue/digital converter for the transmission of the sensor signal via MP-Bus to the higher level system.

Parameterisable actuators: The factory settings cover the most common applications. Single parameters can be modified with the Belimo Service Tools MFT-P or ZTH EU.

Simple direct mounting Simple direct mounting on the damper spindle with an universal spindle clamp, supplied with an anti-rotation device to prevent the actuator from rotating.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Adjustable angle of rotation: Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°. The housing cover must be removed to set the angle of rotation.

Home position: The first time the supply voltage is switched on, i.e. at the time of commissioning, the actuator carries out a synchronisation. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal.Adaption and synchronisation An adaption can be triggered manually by pressing the “Adaption” button or with the PC-Tool. Both mechanical end stops are detected during the adaption (entire setting range). Automatic synchronisation after pressing the gearbox disengagement button is configured. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal. A range of settings can be adapted using the PC-Tool (see MFT-P documentation)

Adaption and synchronisation: An adaption can be triggered manually by pressing the “Adaption” button or with the PC-Tool. Both mechanical end stops are detected during the adaption (entire setting range). Automatic synchronisation after pressing the gearbox disengagement button is configured. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal. A range of settings can be adapted using the PC-Tool (see MFT-P documentation)

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 3.5 W
• Power consumption in rest position 1.4 W
• Power consumption for wire sizing 6 VA
• Connection supply / control Cable 1 m, 4 x 0.75 mm² (halogen-free)
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor Min. 20 Nm
• Torque variable 25%, 50%, 75% reduced
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Control signal Y variable Open-close 3-point (AC only) and Modulating (DC 0...32 V)
• Operating range Y DC 2...10 V
• Operating range Y variable Start point DC 0.5...30 V End point DC 2.5...32 V
• Position feedback U DC 2...10 V
• Position feedback U note Max. 0.5 mA
• Position feedback U variable Start point DC 0.5...8 V and End point DC 2.5...10 V
• Position accuracy ±5%
• Direction of motion motor Selectable with switch 0 / 1
• Direction of motion note Y = 0 V: At switch position 0 (ccw rotation) / 1 (cw rotation)
• Direction of motion variable Electronically reversible
• Manual override Gear disengagement with push-button, can be locked
• Angle of rotation Max. 95°
• Angle of rotation note can be limited on both sides with adjustable mechanical end stops
• Running time motor 150 s / 90°
• Motor running time variable 86...346 s
• Adaption setting range manual
• Adaption setting range variable No action, Adaption when switched on Adaption after pushing the gear disengagement button
• Override control MAX (maximum position) = 100%, MIN (minimum position) = 0% and ZS (intermediate position, AC only) = 50%
• Override control variable MAX = (MIN + 32%)...100%, MIN = 0%...(MAX – 32%) and ZS = MIN...MAX
• Sound power level motor 45 dB(A)
• Spindle driver Universal spindle clamp 14...20 mm
• Position indication Mechanically, pluggable

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP66 + IP67
• Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 4
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 100% r.h.
• Maintenance Maintenance-free

Weight: approx. 2.1 kg
