SKU
SPKD00U5N0

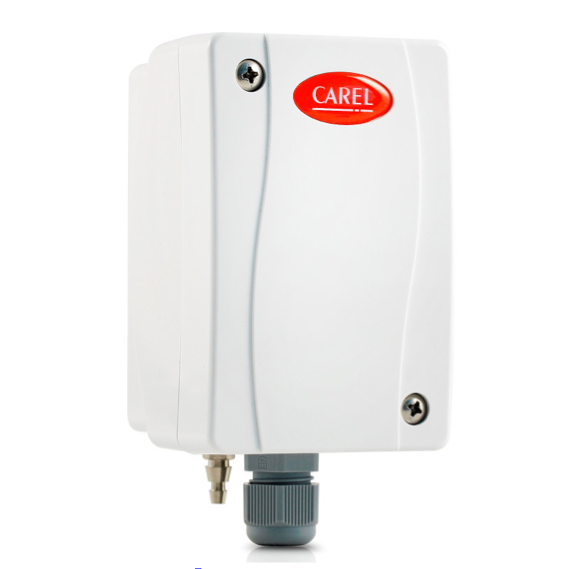

SPKD00U5N0 - Carel Differential Pressure Transducer 0 to 5000 Pa
£442.52
£368.77
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Sensors & Stats |
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Carel |
| Sensor Type | Air Differential Pressure |
| Sensor characteristics | Duct Mounted |
SPKD00U5N0 - Differential Pressure Transducer 0 to 5000 Pa
Operating range:
0 to 1000Pa
0 to 2500Pa
0 to 3000Pa
0 to 5000Pa
Selectable by Dip Switch
Technical data:
Power supply: 15...36VDC(±10%)
Power consumption: <1VA ⁄ 24VDC, <2.2VA ⁄ 24VAC
Measuring ranges: multi-range switching with 4 switchable measuring ranges (see table)
Pressure connection: 4 ⁄ 6x11mm (hoses Ø = 4 ⁄ 6 mm), metal pressure connection nozzles
Output signal: 4...20mA
Accuracy: ±3.0% of final value (at 20°C) -
|
TECHNICAL FEATURES |
|
|
|
|
|
Power supply |
15 to 30 Vdc |
|
Current consumption |
>20mA |
|
Operating temperature |
0 to 50°C |
|
Output signal |
4 to 20mA |
|
Humidity |
<95% r.H. non
condensing |
|
Precision |
±% of final value (at 20°C |
|
Enclosure |
Polyamide 30% glass-globe-reinforced, with quick-locking
screws, co |
|
Dimensions |
72x64x39.4 mm |
|
Electrical connections |
0.14 – 1.5mm2 via terminal screws |
|
Elements for the connection of the air pipes |
Brass, Nylon, Polyurethane, Silicone
rubber |
|
Connection set for air pipes |
standard; included in the package |
|
Protection index |
IP65 (according to IEC529) |
