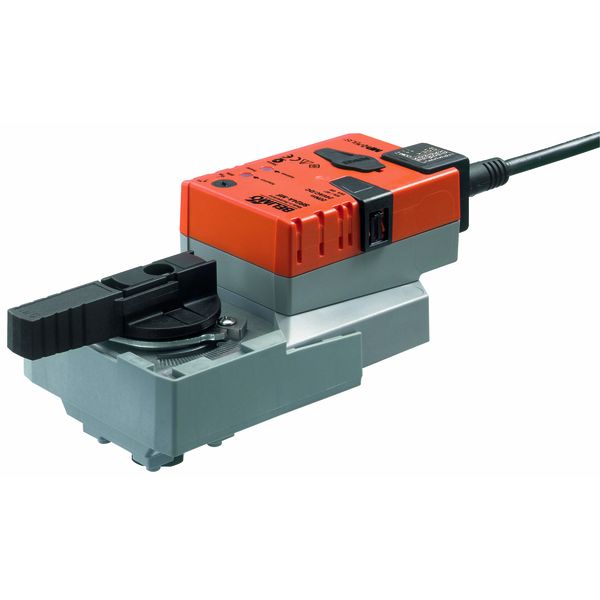

SRC24A-SR - Belimo Rotary actuator 20 Nm, 90° AC / DC 24 V, modulating | ideal for ball valves and butterfly valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo SRC24A-SR is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the SRC24A-SR is 20 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

SRC24A-SR - Rotary actuator 20 Nm, 90° AC / DC 24 V, modulating

• Rotary actuator for control BV
• 20 Nm
• AC/DC 24 V, modulating
• Running time motor 35 s / 90°
• Operating range DC 2...10 V
• Position feedback DC 2...10 V
• IP 54, Manual override temporary, permanent
• Connection cable length = 1 m
• Position indicator mechanical

Features


• Mode of operation The actuator is controlled with a standard modulating signal DC 0 ... 10 V and travels to the position defined by the control signal. Measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators.


• Simple direct mounting Simple direct mounting on butterfly valves or R6..W..-S8 with ISO 5211-F05 mounting flange.The mounting position in relation to the fitting can be selected in 90°<) steps.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked)..


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High operational reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


• Position feedback U5  Operation of the valve is optimised by a limiting ring. This ring reduces the angle of rotation from 95° to 90° , i.e. U5 will deviate from Y by approximately 0.4 V when the valve is open.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•     Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
•     Power consumption In operation 3.5 W @ nominal torque At rest 1.5 W Dimensioning 6 VA
•     Connection Cable 1 m, 2 x 0.75 mm2 Signals Cable 1 m, 4 x 0.75 mm2
•     Parallel connection Possible, note performance data
•     Functional data Torque Motor Min. 20 Nm @ nominal voltage
•     Control Control signal Y DC 0 ... 10 V, typical input impedance 100kΩ Operating range DC 2 ... 10 V
•     Position feedback (Measuring voltage U) DC 2 ... 10 V, max. 1 mA
•     Position accuracy ±5%
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Running time ≤35 s / 90°<)
•     Sound power level Motor ≤45 dB (A) Spring return ≤62 dB (A)
•     Position indication Mechanical, pluggable
•     Safety Protection class III Safety extra-low voltage UL Class 2 Supply
•     EMC CE according to 2004/108/EC
•     Certification Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
•     Mode of operation Type 1
•     Rated impulse voltage 0.8 kV
•     Control pollution degree 3
•     Ambient temperature 0 ... +50°C
•     Media temperature -20 ... +120°C (in butterfly valve)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.h., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 3
•     Weight Approx. 1 kg (without butterfly valve)
