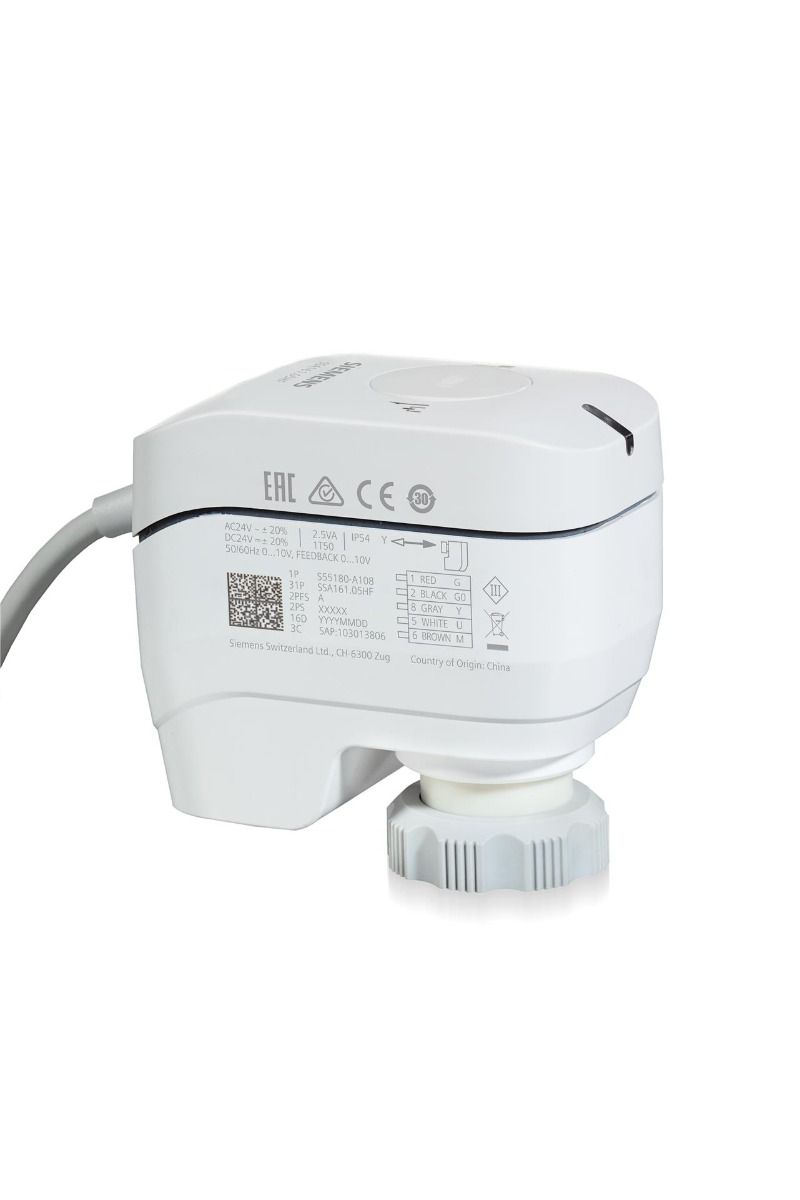

SSA161E.05HF - Siemens Valve Actuator 100 N | ideal for VPP46 and VPI46 pressure independent combi valves, VDN VEN VUN radiator valves, VPD VPE MiniCombi valves MCV, VD1..CLC small valves, globe valves | Operating Voltage AC 24 V, DC 24 V

£89.99 £74.99

On request

Next Supplier Stock Update: 17/10/2026

Manuals & Datasheets

DATA-SHEET

Product type	Actuator
IP rating	IP54
Output Signal	0..10Vdc
Manufacturer	Siemens
Power Supply	24Vac/Vdc
Torque	100 N
Running time	21 to 29 sec
Actuator type	Rotary
Ideal for	globe valves, pressure independent combi valves PICV, radiator valves, MiniCombi valves MCV
size	88.6 x 83.4 x 51.4 mm

For all of the Siemens Actuators that are in stock at IACS, we offer 5 to 7 Working Days Delivery.

The Siemens SSA161E.05HF is a type of Actuator used to control Valve in HVAC systems and applications.

The Torque force applied by the SSA161E.05HF is 100 N.

The Power Supply requested for this Valve Actuator is 24Vac/Vdc.

IACS has the most affordable Siemens Actuator that works with your system.

Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.

Operating voltage	AC/DC 24 V
Stroke	2.5 mm;5 mm
Positioning signal	DC 0...10 V
Positioning force	100 N
Cable length	1.5 m
Power consumption	2.5 VA
Positioning time	25 s
Degree of protection	IP54
Ambient temperature, operation	1…50 °C
Medium temperature	1…110 °C
Dimensions (W x H x D)	88.6 x 83.4 x 51.4 mm
Mounting position	360°
Auxiliary switch	0
Color	White/Gray
