SKU
SSB81

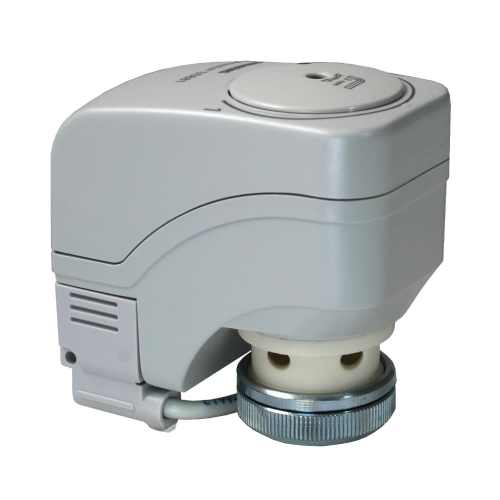

SSB81 - Siemens Valve Actuator non spring return 200N | ideal for 2-port valves, 3-port valves, type V..P45 | Operating Voltage AC 24 V
£65.99
£54.99
On request
Next Supplier Stock Update: 18/10/2026
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| Manufacturer | Siemens |
| Power Supply | 24Vac/Vdc |
| Torque | 200 N |
| Ideal for | 2-port valves, 3-port valves |
| size | 83 x 81.4 x 48 mm |
We provide 5 to 7 Working Days Delivery for all Siemens Actuators that are in stock at IACS.
The Siemens SSB81 is a type of Actuator used to control Valve in HVAC systems and applications.
The Torque force applied by the SSB81 is 200 N.
The Power Supply requested for this Valve Actuator is 24Vac/Vdc.
IACS has the most affordable Siemens Actuator that works with your system.
Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.
The Siemens SSB81 is an electromotoric actuator designed for use in various applications. It is capable of providing a positioning force of 200 N and a stroke of 5.5 mm for precise control. The actuator is equipped with an operating voltage of AC 24 V, a positioning signal of 3-position and a power consumption of 0.8 VA.
It also features a positioning time of 150 s, a cable length of 1.5 m and a degree of protection of IP40. The actuator is designed for an ambient temperature of 1…50°C and a medium temperature of 1…110°C. It has a compact design with dimensions of 83 x 81.4 x 48 mm and can be installed in an upright to 90° inclined position. It does not feature a position feedback or auxiliary switch. The Siemens SSB81 is the perfect choice for a variety of applications requiring reliable and accurate operation.
