The Belimo SVL24A-MP-REis a type of Actuator used to open valves in HVAC systems and applications.

The Torque used by the SVL24A-MP-RE is 1500 N.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

You may utilise this Belimo component with Globe Valves.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

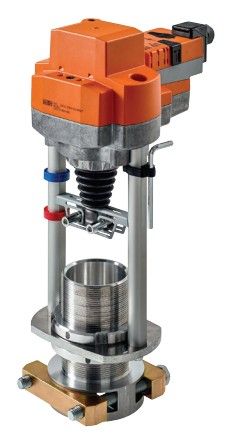

SVL24A-MP-RE Globe Valve Actuator Retrofit, AC/DC 24 V, 150 S

• Globe valve actuator retrofit
• 1500 N, 50 mm
• AC/DC 24 V, modulating, MP-Bus
• Actuating time motor 150 s / 50 mm
• Operating range DC 2...10 V, adj.
• Position feedback DC 2...10 V, adj.
• IP54, manual override temporary, perm.
• Universal valve adapter enclosed
• Connection terminal without cable

Direction of stroke switch: When actuated, the direction of stroke switch changes the running direction in normal operation.

Adaption and synchronisation: An adaption can be triggered manually by pressing the „Adaption“ button or with the PC-Tool. Both mechanical end stops are detected during the adaption (entire setting range). Automatic synchronisation after pressing the gearbox disengagement button is configured. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal. A range of settings can be adapted using the PC-Tool (see MFT-P documentation)

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 3.5 W
• Power consumption in rest position 1.5 W
• Power consumption for wire sizing 5 VA
• Connection supply / control Terminals 4 mm² (cable Ø 4...10 mm)
• Parallel operation Yes (note the performance data)

Functional data:

• Actuating force 1500 N
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Control signal Y variable Open-close, 3-point (AC only) and Modulating (DC 0...32 V)
• Operating range Y DC 2...10 V
• Operating range Y variable Start point DC 0.5...30 V and End point DC 2.5...32 V
• Position feedback U DC 2...10 V
• Position feedback U note Max. 0.5 mA
• Position feedback U variable Start point DC 0.5...8 V and End point DC 2.5...10 V
• Position accuracy 5% absolute
• Manual override Gear disengagement with push-button, can be locked
• Nominal stroke 50 mm
• Actuating time 150 s / 50 mm
• Actuating time variable 90...150 s / 50 mm
• Adaption setting range manual (automatic on first power-up)
• Adaption setting range variable No action, Adaption when switched on Adaption after pushing the gear disengagement button
• Override control MAX (maximum position) = 100%, MIN (minimum position) = 0% and ZS (intermediate position, AC only) = 50%
• Override control variable MAX = (MIN + 33%)...100%, MIN = 0%...(MAX – 33%) and ZS = MIN...MAX
• Sound power level motor 55 dB(A)
• Position indication Mechanically, 5...50 mm stroke

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Degree of protection IEC/EN IP54
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 0...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: Approx. 7.4 kg
