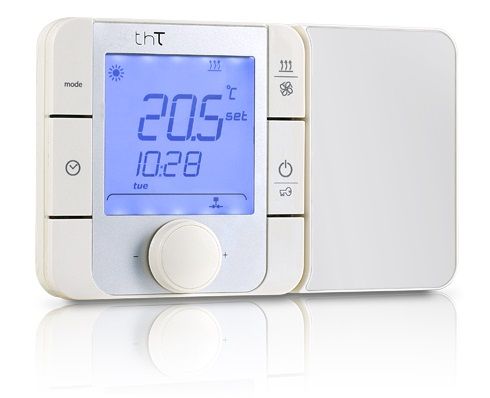

THB000ACW0 - Carel thT: Temperature/Humidity Thermostat - Carel wall-mounting, 230 Vac

The THB000ACW0 is a new wall-mounted CAREL thermostat for temperature and humidity in control domestic or commercial environments, fitted with a simple and intuitive user interface.

thT features the following main operating modes:

• management of weekly time bands according to specific user requirements;
• ECO mode to reduce temperature when the room/area is not occupied (energy saving);
• PARTY function for unplanned events where a higher comfort level is needed.

The device’s compact size make it ideal for any type of space, and is perfect both as the user interface (HMI) for heat pumps, rooftop units, air handling units, etc. and as the zone controller terminal for centralised installations.

The thermostat can operate either:

• in stand-alone mode, as a room thermostat;
• connected via a Modbus® RS485 serial network to a programmable controllers, for various applications (e.g. as zone controller in radiant systems).

The serial connection can be used to manage up to 32 thermostats at the same time, with data sent to a programmable controller or supervisory system and exploiting synergies to give more efficient and accurate temperature control.
