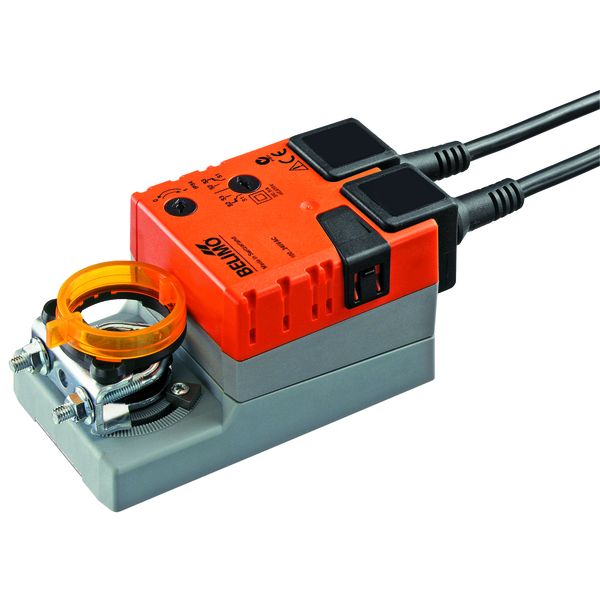

TMC230A-S - Belimo Damper actuator 2 Nm, 35 s, constant, 95°

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo TMC230A-S is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the TMC230A-S is 2 Nm.

This Rotary Actuator needs to be supported by a power supply of 230Vac.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

TMC230A-S - Damper actuator 2 Nm, 35 s, constant, 95°

•    AC 230 V, Open/Close, 3-point, 1 x SPDT
•    IP 54, Manual override with push-button
•    Control with single- / 2-wire contact
•    Auxiliary switch integral, potential-free, 0...100 % adjustable
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral

Features


• Simple direct mounting  Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual operation is possible with the self-resetting pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


• Flexible signalization Flexible signalization with adjustable auxiliary switch (0 ... 100%).

•    Electrical Nominal voltage AC 100 ... 240 V, 50/60 Hz
•    Nominal voltage range AC 85 ... 265 V
•    Power consumption In operation 2 W @ nominal torque At rest 0.5 W For wire sizing  4VA
•    Auxiliary switch 1 x SPDT, 1 mA ... 3 (0.5) A, AC 250 V (0 ... 100% adjustable)
•    Connection Motor Cable 1 m, 3 x 0.75 mm2 Auxiliary switch Cable 1 m, 3 x 0.75 mm2
•    Functional data Torque Motor Min. 2 Nm @ nominal voltage
•    Direction of rotation Reversible with switch 0  or 1
•    Manual override Gearing latch disengaged with pushbutton, self-resetting
•    Angle of rotation Max. 95°<) limited on both sides by means of adjustable, mechanical end stops
•    Sound power level Moto Max. 35 dB (A)
•    Position indication Mechanical, , pluggable
•    Safety Protection class II Totally insulated
•    Degree of protection IP54 in any mounting position
•    EMC CE according to 89/336/EEC Low voltage directive CE according to 73/23/EEC
•    Mode of operation Type 1.AA (to EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3
•    Ambient temperature range –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    MWeight Approx. 500 g
