UC06501010 - Carel 6.5 kg/h 110 Vac single phase, 50 Hz without antifreeze

The UC06501010 - 6.5 kg/h 110 Vac single phase, 50 Hz without antifreeze is designed to ensure efficient and faultless operation for an extended time.

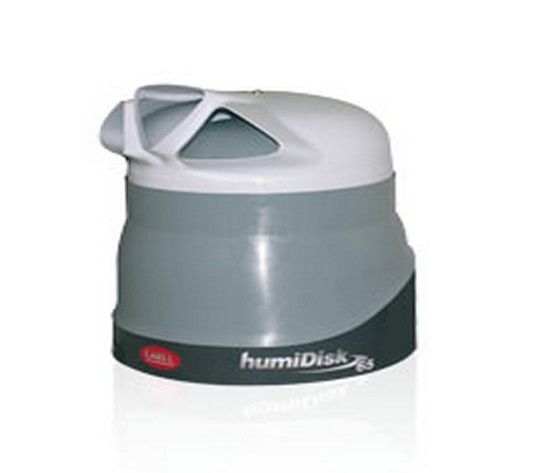

HumiDisk65 is a small humidifier that uses a spinning disk to atomise the water and transform it into millions of very small drops that, blown by a built-in fan, are introduced into the environment, where they evaporate, humidifying and cooling the air.

This is a simple, economic and easy to maintain humidification system, with an energy consumption of just 220 W per 6.5 kg/h of capacity.

The water tank inside the humiDisk65 contains just 0.055 litres of water, which is atomised, at maximum capacity, in just 30s. The water in the tank is therefore changed 120 times per hour, meaning the humidifier substantially works with running water, so as to guarantee the best hygiene conditions.

The operation of the humidifier is controlled by an electronic board inside the humidifier that, as well as managing the normal operation of the appliance, also performs a tank washing cycle when starting the unit, and an emptying cycle at the end of the humidification request. This avoids having stagnated water inside the unit.

IMPORTANT: To ensure a higher level of hygiene, when using the CAREL electrical control panels, the humidifier also washes the water tank at the start of each humidification cycle. The electronic board also features a trimmer to set the capacity of the humidifier.

Electrical panels: Each humiDisk65 centrifugal humidifier must be connected to an electrical control panel, for the control of one or two humidifiers in parallel. The humidity probe, supplied separately, can be connected to the electrical panel, which then manages the humidifier so as to maintain the air humidity at the desired level.

Antifreeze device: HumiDisk65 can be supplied with an optional antifreeze device: an electric immersion heater, controlled by the electronic board and a temperature sensor that is activated when the temperature inside the unit approaches 0 °C. The appliance can operate at temperatures down to around 1 °C without the antifreeze device, and down to -2 °C with the device (optional).

Water used: HumiDisk65 operate on both mains water or treated water.

ADVANTAGES

Simplicity: Requires just the 230 Vac power supply and the mains water and drain lines. Operation is ON/OFF.

Hygienically safe:
- Very small water tank, only 55 millilitres!
- Washing procedure at unit start
- Washing procedure at the beginning of every cycle

Modularity: 1 or 2 humiDisk65 units can be controlled in parallel using the special control panel.
