SKU
UE025YL001

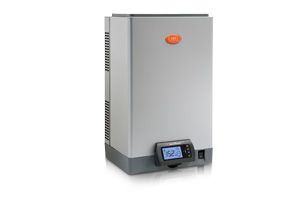

UE025YL001 - Carel humiSteam Basic, Steam Humidifier, Isothermal Immersed electrode humidifier, 25 kg/h, 400 V three phase, ON/OFF or proportional, disposable cylinder
£2,794.88
£2,329.07
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
BROCHURE
| Code | Description | Language | Date | Release |
|---|---|---|---|---|
| +302240551 | Humidity control in printing applications | ENG | 27/05/2008 | 1.0 |
| +302238341 | humiSteam: the evolution of the species of electrode humidifiers | ENG | 01/03/2008 | 1.0 |
MANUAL
| Code | Description | Language | Date | Release |
|---|---|---|---|---|
| +03U0042EN | humiSteam Basic humidifiers | ENG | 03/09/2012 | 1.2 |
| +0300043EN | humiSteam Basic | ENG | 02/12/2009 | 1.0 |
| Product type | Humidifiers & Spares |
| IP rating | IP20 |
| Manufacturer | Carel |
| Power Supply | 400Vac, 3Ph, 50Hz |
| Capacity | 25 Kg/h |
| Control's Type | Basic (Standard) |
| Humidifier Type | Humi Steam |
| Cylinder Type | Standard (disposable) |
Discover the full selection of Carel Humidification parts for your HVAC system at iacs.
The Carel UE025YL001 is a Isothermal humidifier.
This steam humidifier is designed to be used in public spaces like offices, hospitals, and manufacturing facilities. It is designed to be installed in both rooms utilising an air duct with linear steam distributors and a steam blower.
This type of isothermal humidifier features a basic controller.
The Production of Steam is 25 Kg/h.
The Power Supply for this humidifier is 400 V.
Consult the Carel manualsheet and get in touch with our iacs technical support team for technical guidance.
Steam production is controlled by an external signal:
- ON/OFF mode: a simple contact (for example, a humidistat) provides the on/off signal for steam production
- Proportional mode: the humidifier produces a quantity of steam that is directly proportional to the 0 to 10 V signal generated by the external controller, always between 20% and 100% of maximum capacity.
The type “Y” humidifiers have a simple 3 LED display that shows the normal operating conditions and any diagnostic information. In addition, they are fitted with an RS485 interface using the Modbus protocol for configuration and remote control from a BMS.
| Rated steam production (kg/h) | 25 |
| Power input (kW) | 18.75 |
| Power supply | 400 Vac (+10 to -15%), 50/60 Hz three-phase |
| Steam connection (mm) | Ø 40 |
| Outlet pressure limits (Pa) | 0-2000 |
| Number of boilers | 1 |
| Operating conditions | 1T40 °C, 10 to 90% rH non-condensing |
| Storage conditions | -10T70 °C, 5 to 95% rH non-condensing |
| Index of protection | IP20 |
| Water fill | |
| Connection | 3/4”G male |
| Temperature limits (°C) | 1T40 |
| Water pressure limits (MPa-bar) | 0.1 to 0.8 - 1 to 8 |
| Instant flow-rate (l/m) | 5.85 |
| Total hardness (°fH) | ≤40 |
| Conductivity limits (µS/cm) | 75 to 1250 |
| Water drain | |
| Connection | Ø 40 |
| Temperature (°C) | ≤100 |
| Instant flow-rate (l/m) | 225 |
| Steam blower | |
| Number | 1 |
| Type | VRDXL |
| Power supply (Vac) | 230 |
| Rated power (W) | 35 |
| Rated air flow (m3/h) | 650 |
| Network | |
| Integrated network connections | UEX & UEY: Modbus® |
| Optional network connections | UEX & UEW: RS485, BACnet™, LON®, Ethernet™, RS232 + GSM (optional) |
| Controller | UEY / UEX / UEW |
