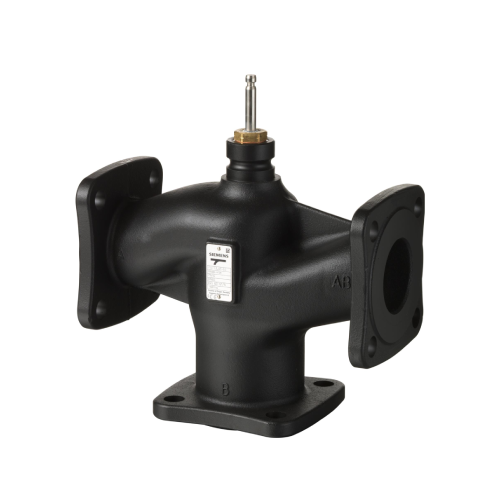

VXF42.65-50 - Siemens 3-port valve, flanged, PN16, DN65, kvs 50

Find all the components for your ventilation system At IACS. All Siemens Valves in stock are ready for delivery in 5 to 7 days.

The Siemens VXF42.65-50 is a Valve used in Air Handling, ventilation and HVAC systems.

The Valve VXF42.65-50 is a 3-port flanged Valve.

The Pressure Nominal is PN16 and the Diameter Nominal is DN 65.It is used in boiler, refrigeration plants, heating groups, ventilation and air-handling units as control or shutoff Valves.

At IACS, you can get the best Siemens Valve for your system at the right price.

Consult the carel custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

VXF42 Valves:

x Performance valves for medium temperatures from -10…130 °C
x Valve body of grey cast iron EN-GJL-250
x DN 25…100
x kvs 2.5…160 m3/h
x Flange type 21, flange design B
x Equipable with electro-motoric actuators SAX.., SAV.. or electro-hydraulic
actuators SKD.., SKB.., SKC..
