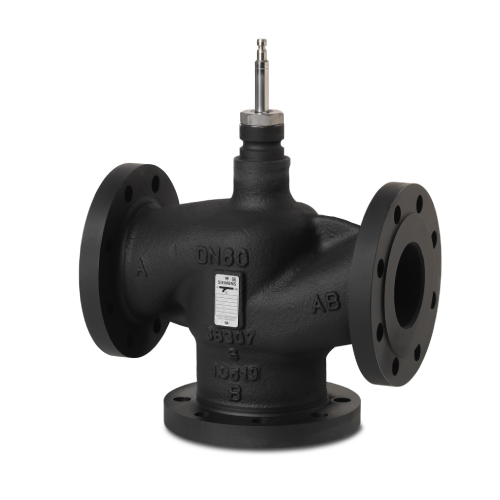

VXF63.100-125 - Siemens 100mm 3-Port flanged cast steel seat valve, PN40 - kvs = 125

Find all the components for your ventilation system at IACS. All Siemens Valves in stock are ready for delivery in 5 to 7 days.

The Siemens VXF63.100-125 is a Valve used in HVAC Systems and Building control applications.

This Siemens Valve has a Pressure Nominal of PN 40.

The Quantity of flow that this Ball Valve manages is KWS 125.

Find the best-priced Siemens Seat Valve that is compatible with your system at IACS.

If you have questions about size or installation, consult the Siemens custom datasheet above or send an email to iacs to get personalised guidance.

VXF63 Valves:

 High-performance valves for medium temperatures from -25…220 °C
 Valve body of cast steel GP240GH
 DN 15…150
 kvs 0.2…315 m3/h
 Flange type 21, flange design B
 VVF63..K with pressure compensation to handle high differential pressure
 Equipable with electro-hydraulic actuators SKD.., SKB.., SKC..
