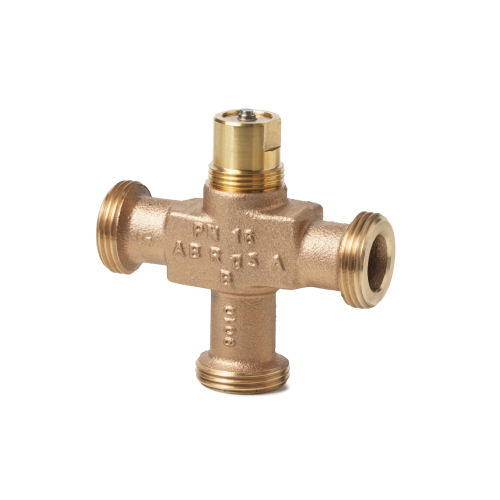

VXG44.15-0.63 - Siemens 3-port seat valve, external thread, PN16, DN15, kvs 0.63

At IACS, you can find every part of your ventilation system. All Siemens-made Valves in stock are suitable for delivery within 5 to 7 days.

The Siemens VXG44.15-0.63 is a Valve used in building control and HVAC systems.

The Pressure Nominal that this Valve offer is PN 16.

The VXG44.15-0.63 Siemens Valve keeps a Diameter Nominal of DN 15.

The Amount of flow that this Ball Valve manages is KWS 0.63.

At IACS, you can get the best Siemens Valve for your system at the right price.

Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

VXG Valves

Used in small and medium-sized heating, ventilating and air conditioning systems as
a control valve for mixing and diverting functions or as a shutoff valve. For
closed circuits only.
● Housing made of bronze CC499K
● DN 15...40
● kvs 0.25...25 m3
/h
● Flat sealing, externally threaded connections G..B, as per ISO 228-1
● Siemens can deliver fitting sets ALG.. with threaded connection and ALS.. with
welded connection
● Manual adjustment by means of mounted knob
● Can be equipped with motorized SAS.. actuators
