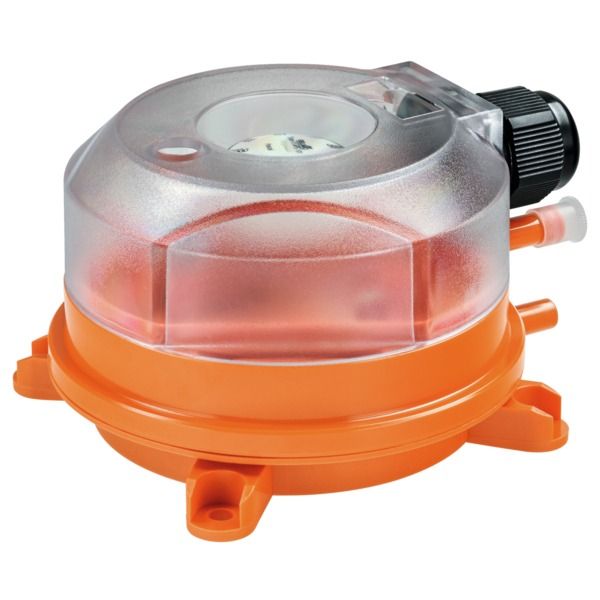

01APS-101 - Belimo Differential pressure switch, 200...1000 Pa

£27.05 £22.54

On request

Next Supplier Stock Update: 17/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP54
Output Signal	1 Digital VFC
Manufacturer	Belimo
Sensor Type	Air Differential Pressure
Probe Length	50 mm

Description

Find every component of your Air Handling system at iacs. Differential Pressure Switches manufactured by Belimo that are now on hand can all be supplied with either Free or 1-2 Days Delivery.

The Belimo 01APS-101 is a Differential Pressure Switch.

for use in monitoring air pressure variations, vacuum conditions, and overpressures in HVAC and energy management systems.

IACS provides the greatest Belimo Sensors for your system at the most affordable costs.

If you have any questions regarding size or installation, please refer to the Belimo custom datasheet above or email iacs for customised assistance.

Electrical data	Electrical connection	Terminals for wire 0.5...1.5 mm²
	Cable entry	Cable Gland Cap Nut with strain relief Ø5...10 mm
Functional data	Output signal switch note	Contact current max.1.0 A (0.4) / AC 250 V
	Communicative control	Modbus RTU (Details see separate document "Sensor Modbus Register")
	Media	Air
Measuring data	Measured values	Differential pressure
	Measuring media	Air, non-combustible and non-aggressive gases
	Accuracy pressure	±15% (tolerance for upper and lower switching pressure)
	Overload range	10 kPa
	Burst pressure	10 kPa
Materials	Housing	Bottom Part: PA 6.6
		Top Cover: PS

Scope of delivery	2m PVC Hose
	2 x Duct connectors (plastic)
