01APS-104 - Belimo Differential pressure switch, 500...2500 Pa

£27.05 £22.54

On request

Next Supplier Stock Update: 17/10/2026

Chat with us to find out stock levels

Overview

Manuals & Datasheets

MANUAL

MOUNTING

INSTRUCTIONS

BROCHURE

IP rating	IP54
Output Signal	1 Digital VFC
Manufacturer	Belimo
Sensor Type	Air Differential Pressure
Probe Length	50 mm

Description

Explore all the components for your ventilation system at iacs. All Belimo Differential Pressure Switches in stock are ready for delivery with either Free or 1-2 Days Delivery.

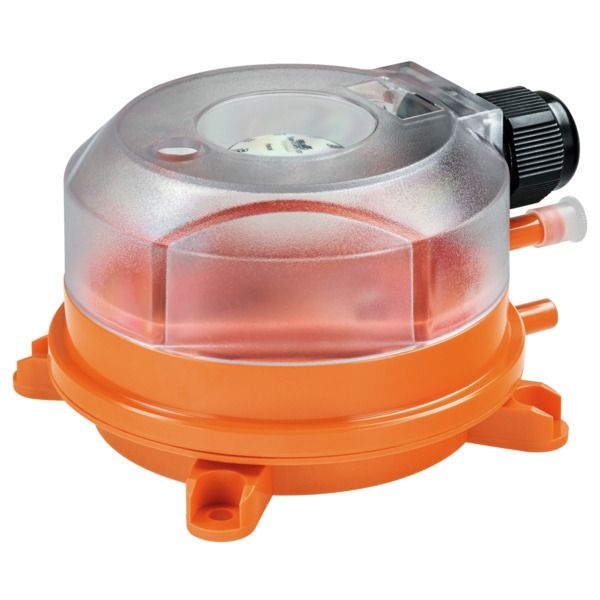

The Belimo 01APS-104 is a Differential Pressure Switch.

intended for use in HVAC and energy management applications to measure the overpressure, vacuum, and Differential Pressure of air or other noncombustible, nonaggressive gases.

IACS has the most economical Belimo Sensors for your system.

If you have any inquiries about installation or size, please see the aforementioned Belimo custom datasheet or contact iacs via email for personalised assistance.

Electrical data	Electrical connection	Terminals for wire 0.5...1.5 mm²
	Cable entry	Cable Gland Cap Nut with strain relief Ø5...10 mm
Functional data	Output signal switch note	Contact current max.1.0 A (0.4) / AC 250 V
	Communicative control	Modbus RTU (Details see separate document "Sensor Modbus Register")
	Media	Air
Measuring data	Measured values	Differential pressure
	Measuring media	Air, non-combustible and non-aggressive gases
	Accuracy pressure	±15% (tolerance for upper and lower switching pressure)
	Overload range	10 kPa
	Burst pressure	10 kPa
Materials	Housing	Bottom Part: PA 6.6
		Top Cover: PS

Scope of delivery	2m PVC Hose
	2 x Duct connectors (plastic)
