CN1116 - This has now been phased out: Replaced by the CN1127

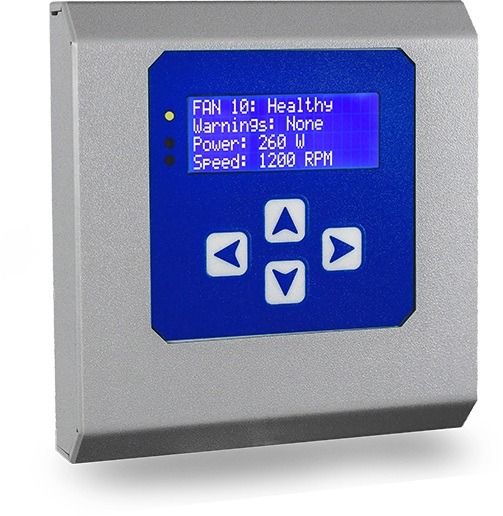

The CN1116 is ebm-papst's wall-mounted Modbus Display & Control unit for EC fan systems. It provides a single interface for monitoring, commissioning, and controlling up to 100 ebm-papst EC fans connected over an RS485 Modbus network, while simultaneously exposing real-time data to a Building Management System (BMS) or IoT datalogger via a second RS485 Modbus slave port.

The built-in LCD and four-button keypad allow engineers to read fan status, set operating parameters, and configure the controller on-site without additional tooling. A Modbus auto-addressing routine speeds commissioning by automatically scanning and assigning addresses to connected fans.

Operating Modes

• Monitor — Displays pre-defined EC fan parameters (status, speed, power, warnings) on the LCD and RS485 Modbus slave port. A fault condition triggers the on-board LED and volt-free relay output. An optional 0–10V differential pressure sensor can be connected to display differential pressure or calculate volume flow.
• Monitor & Control — All Monitor functions plus fan speed control via a 0–10V external signal, a third-party Modbus master device, or the keypad directly.
• Constant Volume / Constant Pressure — Uses one or more 0–10V differential pressure sensors to maintain a constant volume or pressure setpoint. Setpoint is configurable via the keypad or the RS485 Modbus slave port.
• Modbus Relay — Relays all Modbus commands received on the slave port directly to the EC fans, enabling individual fan control and full access to each fan's Modbus register map.

Typical Applications

• AHU and ventilation plant rooms with multiple ebm-papst EC fans
• Plant monitoring with BMS or SCADA integration via Modbus RTU (RS485)
• Constant volume or constant pressure control in ductwork systems
• Commissioning and fault diagnostics on EBM-Papst EC fan arrays

Specification

• Part Number: CN1116
• Supply Voltage: 9–24 VDC (external PSU) or 10 VDC from fans' PSU (reverse polarity protected)
• Supply Current: 20 mA (low LCD backlight) – 40 mA (full LCD backlight)
• Fan Capacity: Up to 100 EC fans via RS485 Modbus master port
• Communication: Dual RS485 Modbus ports (master: fans; slave: BMS / third-party)
• Control Input: 0–10V (speed control or pressure sensor input)
• Relay Output: Volt-free relay (fault alarm)
• Enclosure: Wall mount, 204 g
• Operating Environment: -20°C to +60°C, 90% RH at 40°C max.
• EMC Compliance: BS EN61000-6-3 (emissions), BS EN61000-6-2 (immunity)
• Certifications: UKCA / CE (available on request)
• Compatible Fans: ebm-papst Modbus-enabled EC fans with firmware v5.0 or later

For full wiring diagrams, register maps, and commissioning instructions, refer to ebm-papst document 210-OMI14229. For differential pressure sensor wiring to fan 0–10V inputs, see the full operating and maintenance manual.
