F22090202 - IBC Controls Worm Gear Motor IE1 90W 200rpm — OEM Replacement for Hoval Heat Recovery Units

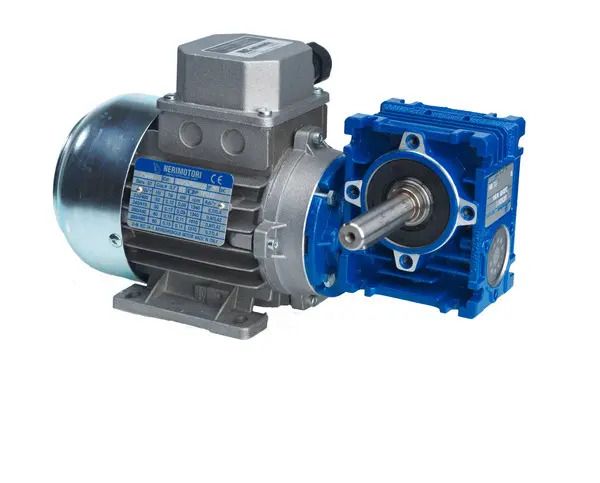

The IBC Controls F22090202 is a worm gear motor IE1 rated at 90 W and 200 rpm, designed for variable-speed control of rotary heat exchangers. This is an OEM variant of the standard IBC Controls 90/200 motor, produced specifically for use in Hoval heat recovery units. If you are sourcing a direct replacement motor for a Hoval AHU or rotary heat exchanger, this is the correct part.

The motor features an aluminium housing for improved thermal dissipation, a built-in thermal contact drawn to the terminal for straightforward integration, and an extended output shaft. It is rated IP55 and suitable for ambient temperatures from −15 °C to +40 °C. When paired with an IBC Controls control unit such as the MicroMax or MiniMax series, the motor must be D-connected (3×230 V). It supports rotor diameters up to 1,500 mm at a maximum rotor speed of 12 rpm.

Technical Specifications

• Manufacturer: IBC Controls
• Part Number: F22090202
• OEM Application: Hoval rotary heat exchangers (replaces standard F22090200)
• Motor Type: Worm gear motor
• Efficiency Class: IE1
• Poles: 4
• Rated Output: 90 W
• Rated Output Shaft Speed: 200 rpm
• Gear Ratio: 1:7
• Rated Torque (output gear): 3.0 Nm
• Rated Current: 0.7 A (230 V) / 0.4 A (400 V)
• Connection Voltage: 3×230/400 V, 50 Hz
• Connection (with IBC control unit): D-connected (3×230 V)
• Protection Form: IP55
• Ambient Temperature: −15 °C to +40 °C
• Max Operating Temperature: <+40 °C
• Max Rotor Diameter (at 12 rpm): 1,500 mm
• Thermal Contact: Built-in, drawn to terminal
• Output Shaft: Extended
• Housing: Aluminium coating for improved thermal dissipation
• Weight: 3.9 kg
• Warranty: 2 years

Typical Applications:

• Rotary heat exchanger (thermal wheel) drives in Hoval air handling units
• Variable-speed belt-driven thermal wheel systems in commercial and industrial AHUs
• Replacement/service part for failed OEM motors in existing Hoval heat recovery units
• Heat recovery ventilation systems requiring proportional speed control via a 0–10V input signal
• AHU installations controlled by IBC Controls MicroMax, MicroMax180 or MiniMax control units
• Rotary heat exchangers up to 1,500mm rotor diameter at speeds up to 12rpm

Compatible IBC Controls Control Units

This motor is suitable for use with the IBC Controls MicroMax, MicroMax180, and MiniMax control units for proportional speed regulation of rotary heat exchangers up to 1,500 mm rotor diameter. Ensure D-connection (3×230 V) when wiring to an IBC Controls control unit.
