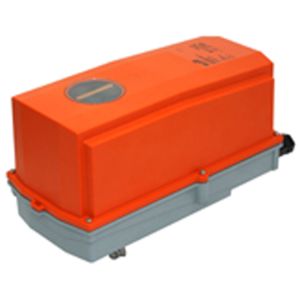

GM24G-SR-T - Belimo Damper actuator NEMA4 40 Nm, 150 s / 90°, AC / DC 24 V, modulating IP 66 NEMA4, Manual override with push-button

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo GM24G-SR-T is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the GM24G-SR-T is 40 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

GM24G-SR-T - Damper actuator NEMA4 40 Nm, 150 s / 90°, AC / DC 24 V, modulating IP 66 NEMA4, Manual override with push-button

•    Control DC 0...10 V, adjustable
•    Operating range DC 2...10 V
•    Position feedback DC 2...10 V
•    Connection with terminals
•    Direction of rotation selectable
•    Angle of rotation limit. mechanical integral
•    Spindle driver universal spindle clamp
•    Sound power level max.45 dB (A)

Features

• Fields of application The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions:
  – UV radiation
  – rain / snow
  – dirt / dust
  – humidity
  – Changing atmosphere / frequent and severe temperature fluctuations (recommendation: use the actuator with integrated factory-installed heating which can be ordered separately to prevent internal condensation * {in development})


• Mode of operation The actuator is controlled with a standard modulating signal of DC 0 ... 10 V and travels to the position defined by the control signal. The measuring voltage U serves for the electrical display of the damper position 0 ... 100% and as slave control signal for other actuators.


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual override with pushbutton possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°. The housing cover must be removed to set the angle of rotation.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•    Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
•    Power consumption In operation 4.5 W @ nominal torque
•    At rest 2 W
•    For wire sizing 7 VA (lmax 20 A @ 5 ms)
•    Functional data Factory settings Variable Setting
•    Torque Min. 40 Nm @ nominal Voltage
•    Control Control signal Y DC 0 … 10 V, input impedance 100 k ohm
•    Operating range DC 2 ... 10 V
•    Position feedback (Measuring voltage U) DC 2 ... 10 V, max. 0.5 mA
•    Position accuracy ±5%
•    Direction of rotation Motor As an option with clockwise or anticlockwise
•    Emergency setting position Reversible with switch 0 ... 100%
•    Direction of rotation Y = 0 V At switch position 1 or 0 , respectively
•    Manual override Gearing latch disengaged with push button
•    Angle of rotation Max. 95° , can be limited at both ends with adjustable mechanical end stops
•    Running time Standard operation 150 s / 90°
•    Sound power level Standard operation 45 dB (A) @ 90 s running time, <=52 dB (A) @ 150 s running time
•    Position indication Mechanical, pluggable
•    Safety Protection class III Safety extra-low voltage UL Class 2 Supply
•    Degree of protection IP66 NEMA 4, UL Enclosure Type 4
•    EMC CE according to 2004/108/EC
•    Certification Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
•    Mode of operation Type 1
•    Rated impulse voltage 0.8 kV
•    Control pollution degree 4
•    Ambient temperature –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity 100% r.h., non-condensating
•    Maintenance Maintenance-free
•    Dimensions See «Dimensions» on page 7
•    Weight Approx. 4.7 kg
