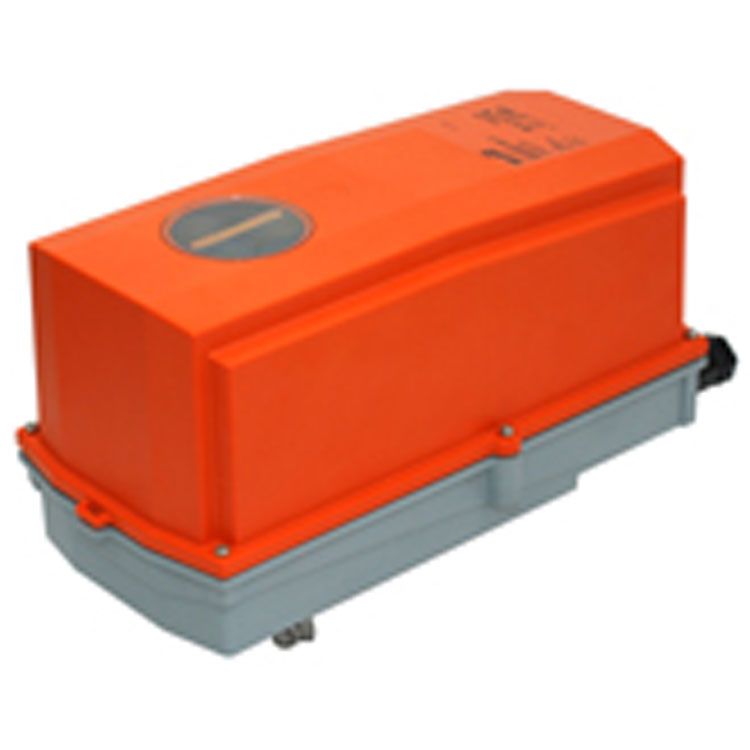

GM24G-T - Belimo Damper actuator NEMA4 40 Nm, 150 s / 90°,AC / DC 24 V, Open/Close IP 66 NEMA4, Manual override with push-button

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo GM24G-T is a kind of Actuator used to manage dampers in HVAC applications and systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the GM24G-T is 40 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

GM24G-T - Damper actuator NEMA4 40 Nm, 150 s / 90°,AC / DC 24 V, Open/Close IP 66 NEMA4, Manual override with push-button

•    Control single-wire
•    Connection with terminals
•    Direction of rotation selectable
•    Angle of rotation limit. mechanical integral
•    Spindle driver universal spindle clamp
•    Sound power level max.45 dB (A)

Features

• Fields of application The actuator is particularly suitable for utilisation in outdoor applications and is protected against the following weather conditions:
  – UV radiation
  – rain / snow
  – dirt / dust
  – humidity
  – Changing atmosphere / frequent and severe temperature fluctuations (recommendation: use the actuator with integrated factory-installed heating which can be ordered separately to prevent internal condensation * {in development})


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual override with pushbutton possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°. The housing cover must be removed to set the angle of rotation.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•    Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•    Nominal voltage range AC 19.2 ... 28.8 V / DC 21.6 ... 28.8 V
•    Power consumption In operation 4 W @ nominal torque
•    At rest 2W
•    For wire sizing 6 VA (lmax 20 A @ 5 ms)
•    Connection Terminals 4 mm2 (cable Ø 4 ... 10 mm)
•    Functional data
•    Torque Min. 40 Nm @ nominal Voltage
•    Direction of rotation Motor As an option with clockwise or anticlockwise
•    Direction of rotation Reversible with switch
•    Manual override Gearing latch disengaged with push button
•    Angle of rotation Max. 95° , can be limited at both ends with adjustable mechanical end stops
•    Running time Standard operation 150 s / 90°
•    Sound power level Standard operation 45 dB (A)
•    Position indication Mechanical, pluggable
•    Safety Protection class III Safety extra-low voltage UL Class 2 Supply
•    Degree of protection IP66 NEMA 4, UL Enclosure Type 4
•    EMC CE according to 2004/108/EC
•    Certification Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14 cULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02
•    Mode of operation Type 1
•    Rated impulse voltage 0.8 kV
•    Control pollution degree 4
•    Ambient temperature –30 ... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity 100% r.h., non-condensating
•    Maintenance Maintenance-free
•    Dimensions See «Dimensions» on page 3
•    Weight Approx. 4.7 kg
